Cabinet connectors

chevron_left Back
Cabinet connectors
Cabinet connectors
Ident no: 01100861
Part no.: 40.0220 DUEB V2500 NA
Box qty: 2500 pcs
  • type: cabinet connectors
  • colour/surface: natural
  • diameter: 10 mm

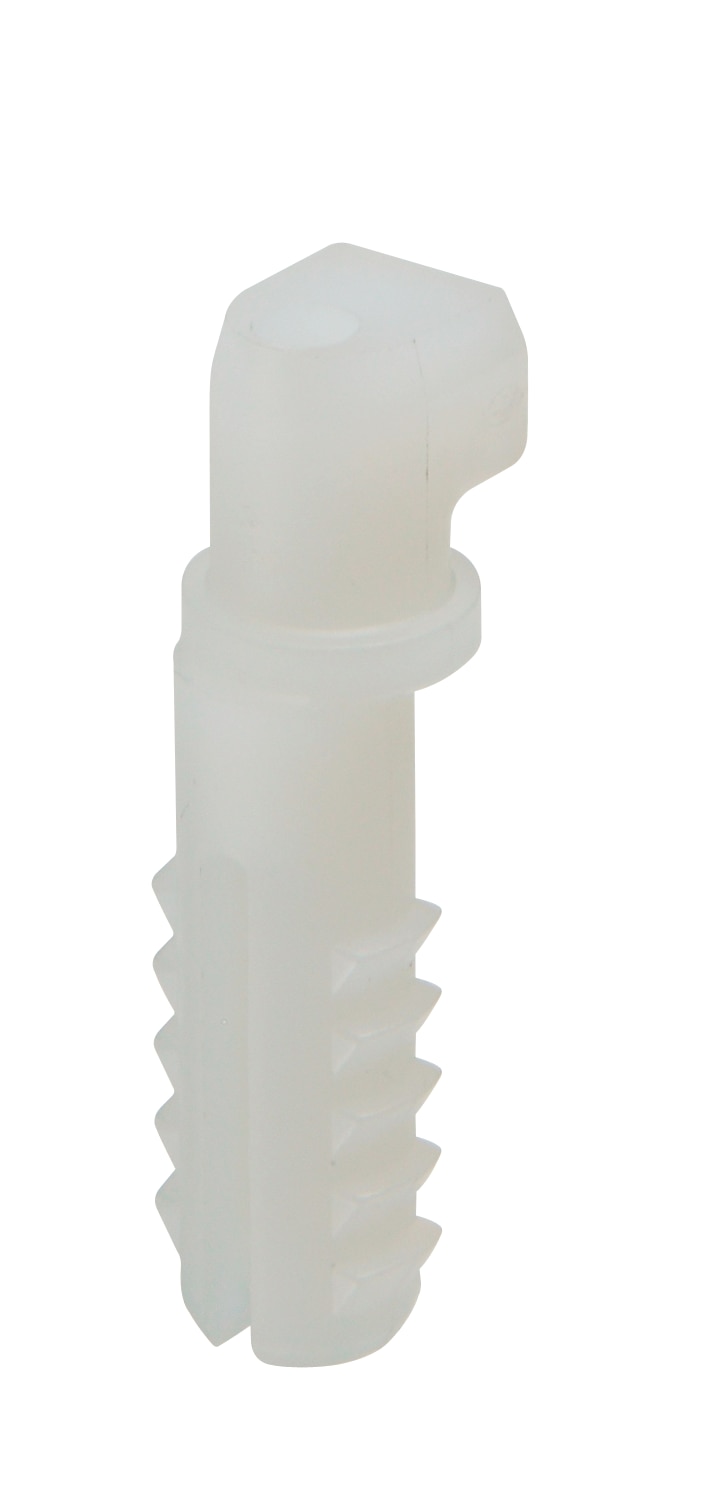

Split dowel (connector), nylon, Natural
Ident no: 01100861 Part no.: 40.0220 DUEB V2500 NA Box qty: 2500 pcs
  • type: cabinet connectors
  • colour/surface: natural
  • diameter: 10 mm
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Der Dübel ist ein Korpusverbinder. Er ermöglicht eine stabile Verbindung für verschiedene Möbelkonstruktionen.
description Technical data expand_more

Technical data

type
cabinet connectors
colour/surface
natural
diameter
10 mm
diameter of fixing hole
8.00 mm
length
36 mm
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

perm_identity Log in Register now
handyman Assembly instructions expand_more
