CABLOXX Synchronisation linkage

chevron_left Back

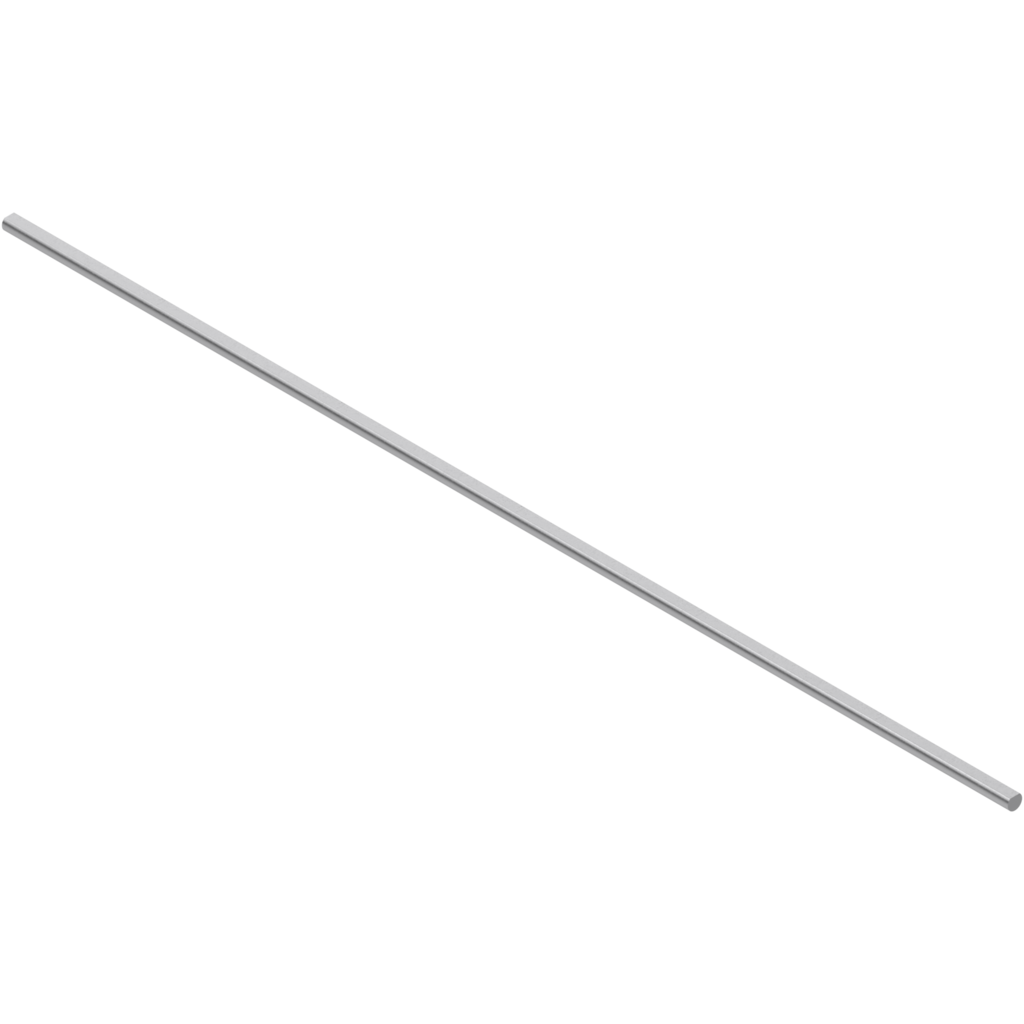

CABLOXX Synchronisation linkage
Locking system shaft, Length=1163 mm, CABLOXX, for cutting to size
Ident no: 02013775
Part no.: Z80V1163W SYN-WEL 40 ROH
Box qty: 40 pcs

Locking system shaft, Length=1163 mm, CABLOXX, for cutting to size

Ident no: 02013775 Part no.: Z80V1163W SYN-WEL 40 ROH Box qty: 40 pcs
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Eine Synchronisierungswelle verbindet rechte und linke Führungs- bzw. Korpusschiene und sorgt dafür, dass beide besonders synchron laufen. Dadurch wird ein besonders sanftes und gleichmäßiges Öffnen und Schließen der Auszüge, auch bei einseitiger Belastung und bei breiten Fronten, ermöglicht. Der Einsatz einer Synchronisierung bei Auszügen, wovon die Synchronisierungswelle ein zentraler Bestandteil ist, ist demnach zu empfehlen.
description Technical data expand_more

Technical data

type
Synchronisation linkage
shape
RoundWithFlattering
length
1163 mm
internal cabinet width
0-1171 mm
can be cut to size
yes
