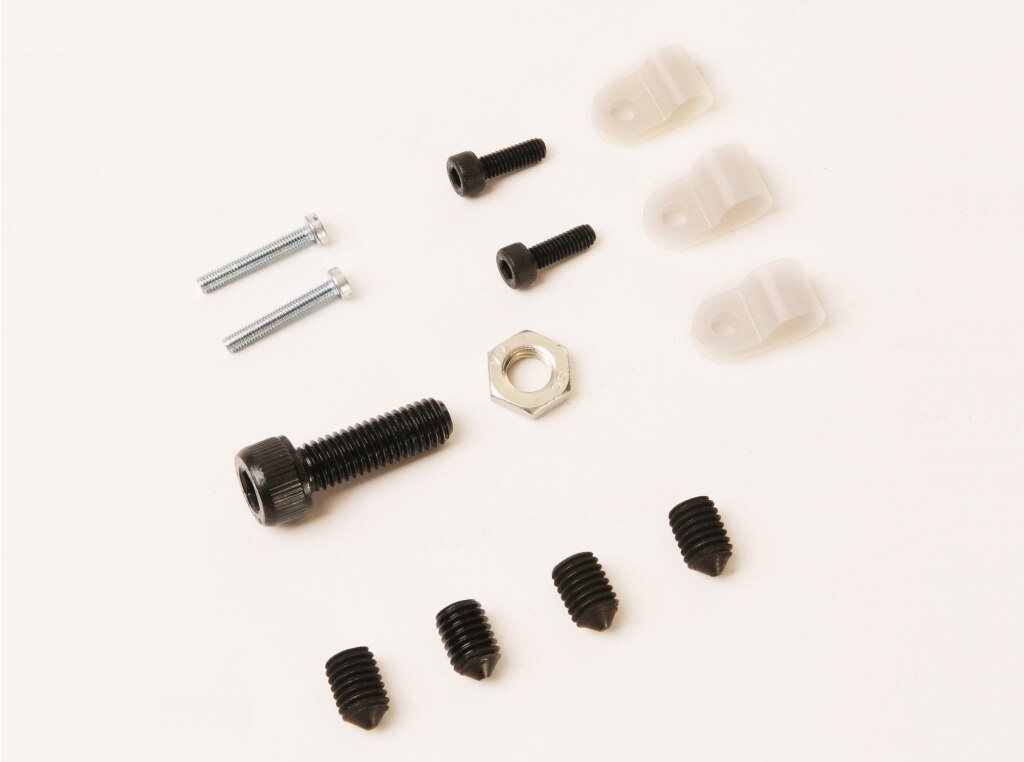

Carriage small parts for MINIPRESS M, MINIDRILL, MINIPRESS P, MINIPRESS PRO, MINIPRESS

chevron_left Back
Carriage small parts for MINIPRESS M, MINIDRILL, MINIPRESS P, MINIPRESS PRO, MINIPRESS
Carriage small parts for MINIPRESS M, MINIDRILL, MINIPRESS P, MINIPRESS PRO, MINIPRESS
Ident no: 09029084
Part no.: SCHR.+ZUT SCHLITTEN M+P
Box qty: 1 pc
  • type: carriage small parts
V carriage, for MINIDRILL, for MINIPRESS, for MINIPRESS M, for MINIPRESS P, for MINIPRESS PRO
Ident no: 09029084 Part no.: SCHR.+ZUT SCHLITTEN M+P Box qty: 1 pc
  • type: carriage small parts
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Ersatzteile für Verarbeitungshilfen sind darauf ausgerichtet, die Lebensdauer und Leistungsfähigkeit der Maschinen zu maximieren. Jedes Ersatzteil wird nach höchsten Qualitätsstandards gefertigt, um eine perfekte Passform und zuverlässige Funktion zu gewährleisten.
description Technical data expand_more

Technical data

type
carriage small parts
scope of delivery
1x V carriage
model
05
suitable for
MINIDRILL / MINIPRESS / MINIPRESS M / MINIPRESS P / MINIPRESS PRO
