Clamping lever set

chevron_left Back

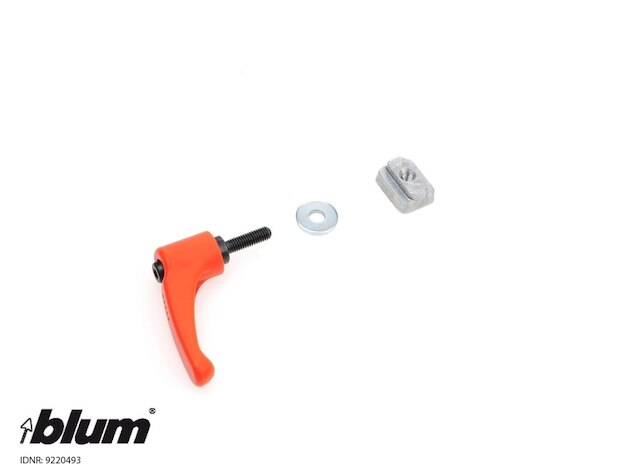

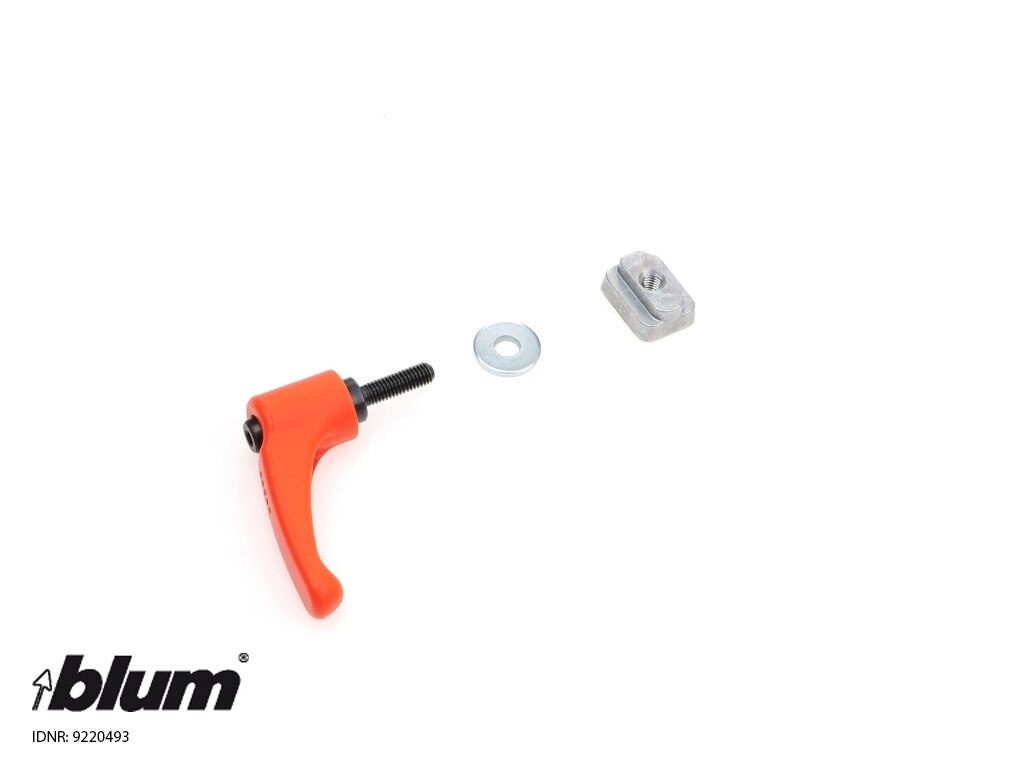

Clamping lever set
Clamping lever set, for BOXFIX PRO, for BOXFIX plus, for BOXFIX P, Orange
Ident no: 09220493
Part no.: KLEMMHEBEL M 5X25+ZUT OR
Box qty: 1 pc

Clamping lever set, for BOXFIX PRO, for BOXFIX plus, for BOXFIX P, Orange

Ident no: 09220493 Part no.: KLEMMHEBEL M 5X25+ZUT OR Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Ersatzteile für Verarbeitungshilfen sind darauf ausgerichtet, die Lebensdauer und Leistungsfähigkeit der Maschinen zu maximieren. Jedes Ersatzteil wird nach höchsten Qualitätsstandards gefertigt, um eine perfekte Passform und zuverlässige Funktion zu gewährleisten.
description Technical data expand_more

Technical data

type
clamping lever set
colour/surface
orange
scope of delivery
1x clamping lever
suitable for
BOXFIX P / BOXFIX plus / BOXFIX PRO
