Clamping lever set

chevron_left Back

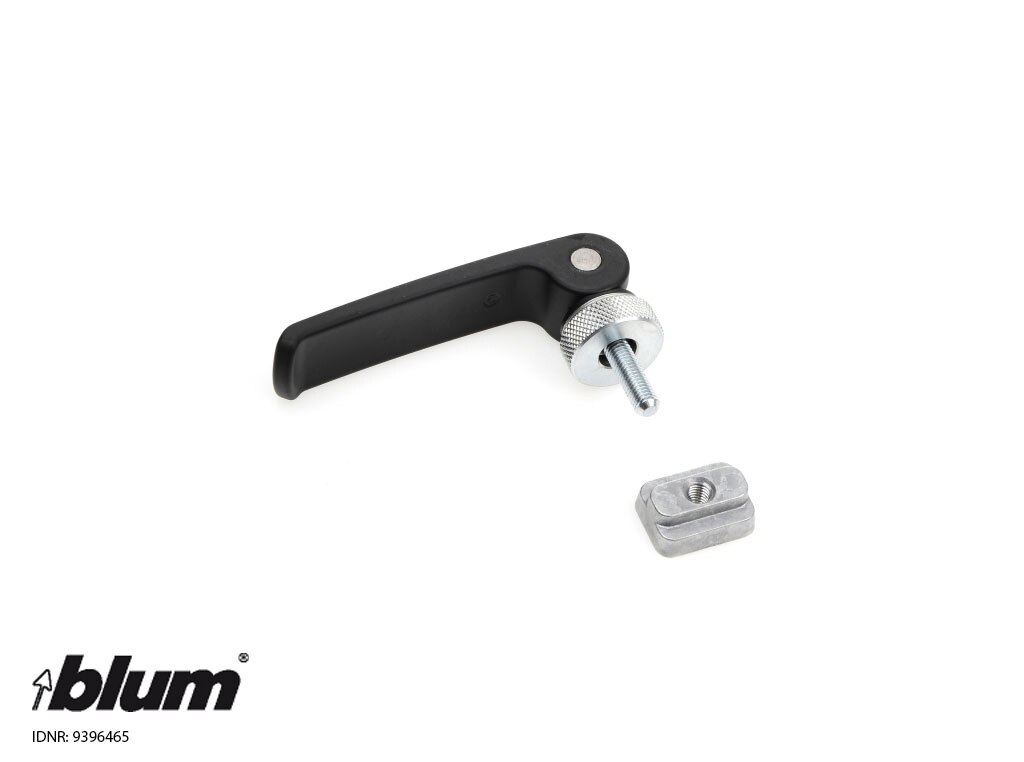

Clamping lever set
Clamping lever set, for BOXFIX PRO, for BOXFIX plus, Black
Ident no: 09396465
Part no.: KLEMMHEBEL M 5X16+ZUT S
Box qty: 1 pc

Clamping lever set, for BOXFIX PRO, for BOXFIX plus, Black

Ident no: 09396465 Part no.: KLEMMHEBEL M 5X16+ZUT S Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Ersatzteile für Verarbeitungshilfen sind darauf ausgerichtet, die Lebensdauer und Leistungsfähigkeit der Maschinen zu maximieren. Jedes Ersatzteil wird nach höchsten Qualitätsstandards gefertigt, um eine perfekte Passform und zuverlässige Funktion zu gewährleisten.
description Technical data expand_more

Technical data

type
clamping lever set
colour/surface
black
scope of delivery
1x clamping lever
suitable for
BOXFIX plus / BOXFIX PRO
