CLIP CRISTALLO mounting plate horizontal

chevron_left Back

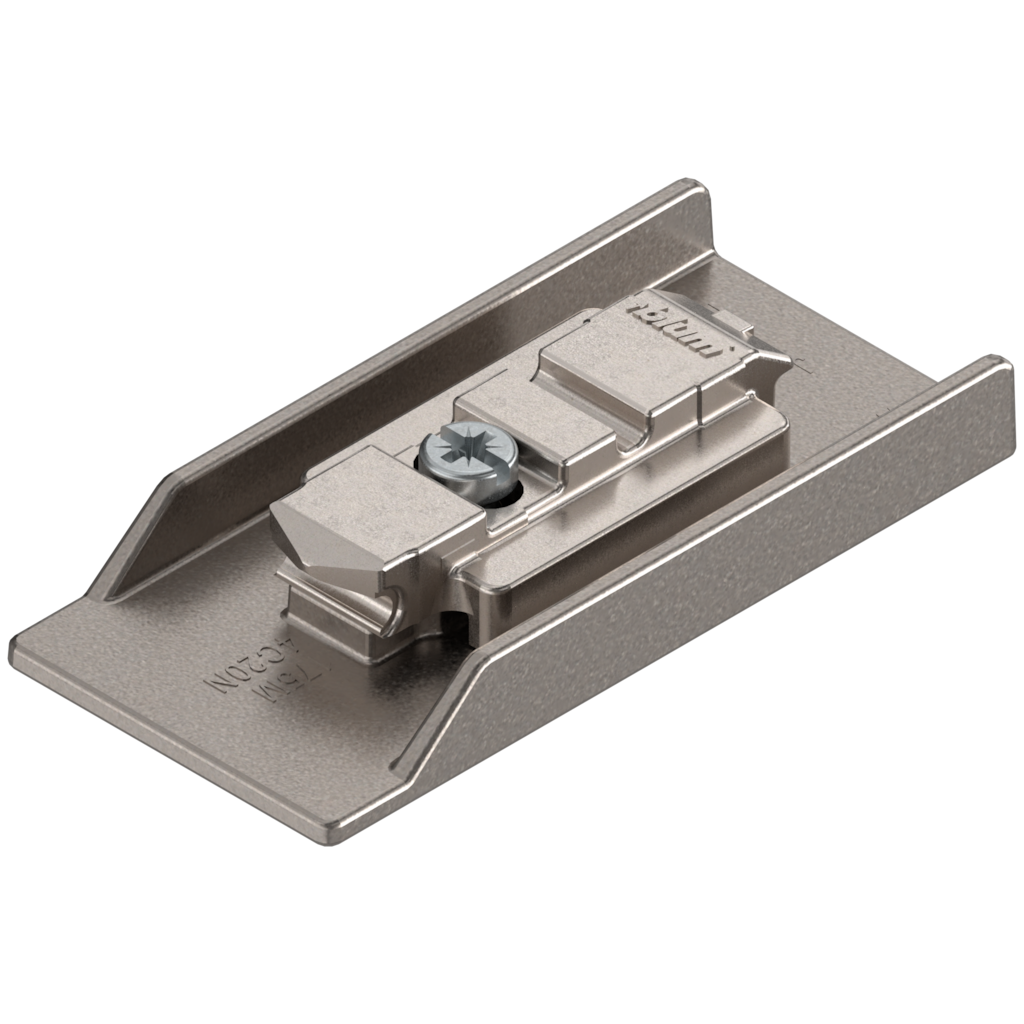

CLIP CRISTALLO mounting plate horizontal
CLIP CRISTALLO mounting plate horizontal
Ident no: 01713250
Part no.: 175M4C20N MPL GL+SP SMNI
Box qty: 25 pcs
  • colour/surface: matt-nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: glue-on
  • height adjustment type: With screw
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal
CLIP CRISTALLO-mounting plate, glue-on, horizontal, 0 mm, zinc, glue-on, sand grey + matt nickel plated
Ident no: 01713250 Part no.: 175M4C20N MPL GL+SP SMNI Box qty: 25 pcs
  • colour/surface: matt-nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: glue-on
  • height adjustment type: With screw
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Die CLIP CRISTALLO-Montageplatte mit Aufklebetechnik ist für Glas- und Spiegeltüren optimal geeignet und gewährleistet eine stabile und sichere Befestigung des Scharniers an der Front. Die Montageplatte ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion. Dank des bewährten CLIP-Mechanismus lässt sich die Front werkzeuglos am Korpus montieren und demontieren.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
matt-nickel plated
mounting plate spacing
0 mm
fixing method
glue-on
height adjustment type
With screw
