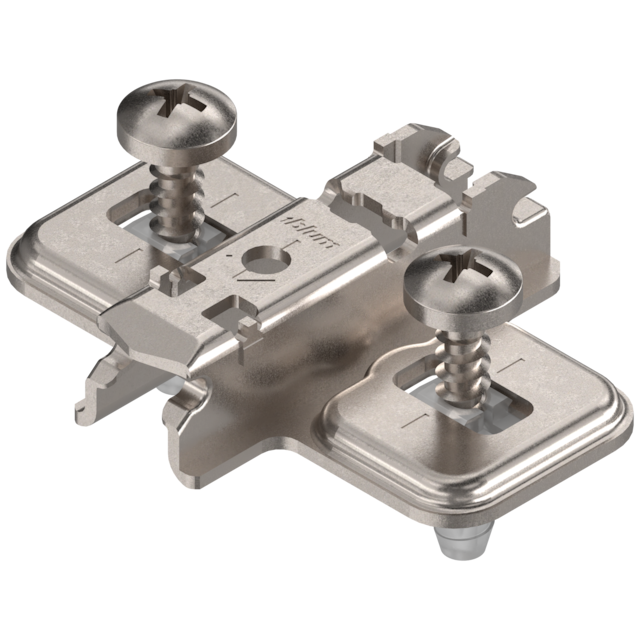

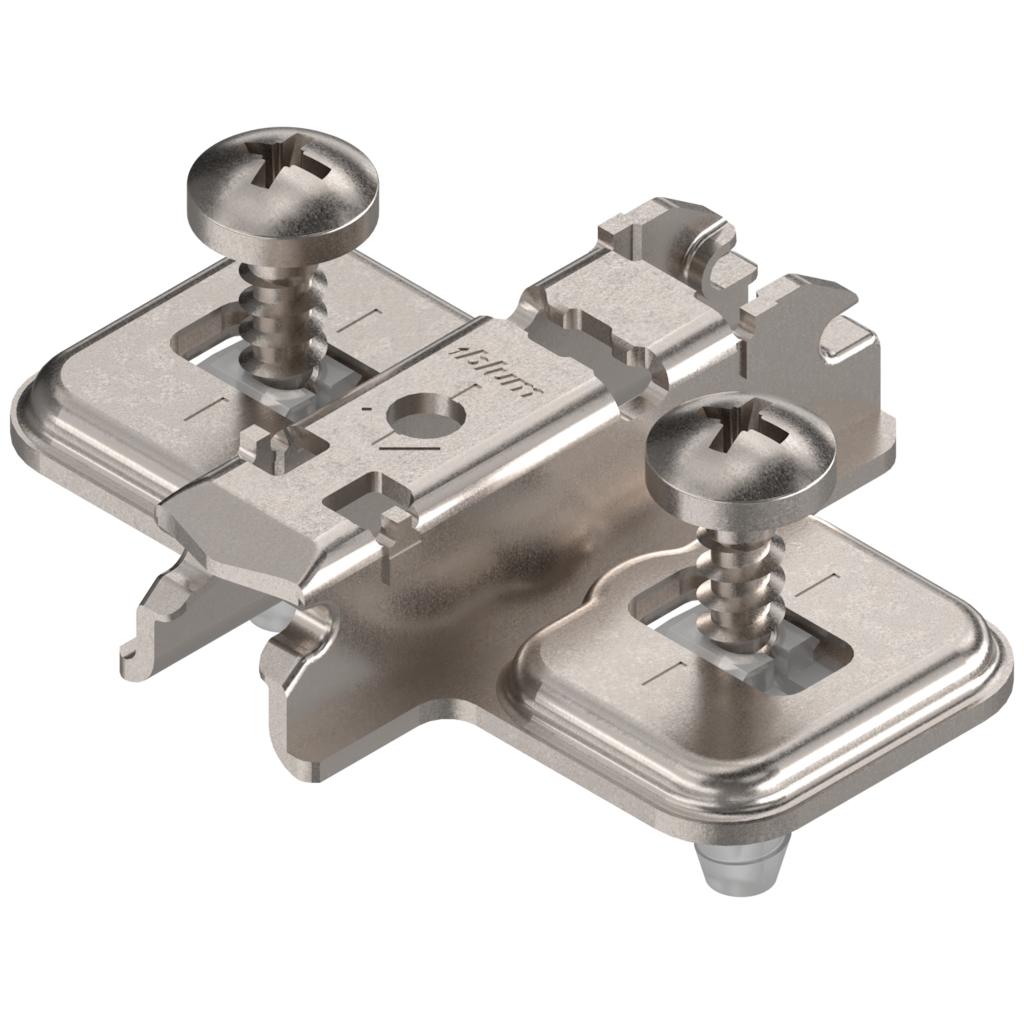

CLIP mounting plate cruciform

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 01863183
Part no.: 174E6130.01DUEPL*V500 NI
Box qty: 500 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 3 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform

CLIP mounting plate cruciform

  • colour/surface: nickel plated
  • mounting plate spacing: 3 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
Ident no: 01863183 Part no.: 174E6130.01DUEPL*V500 NI Box qty: 500 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
3 mm
diameter of fixing hole
5.00 mm
fixing method
with EXPANDO split dowels
