CLIP mounting plate cruciform

chevron_left Back

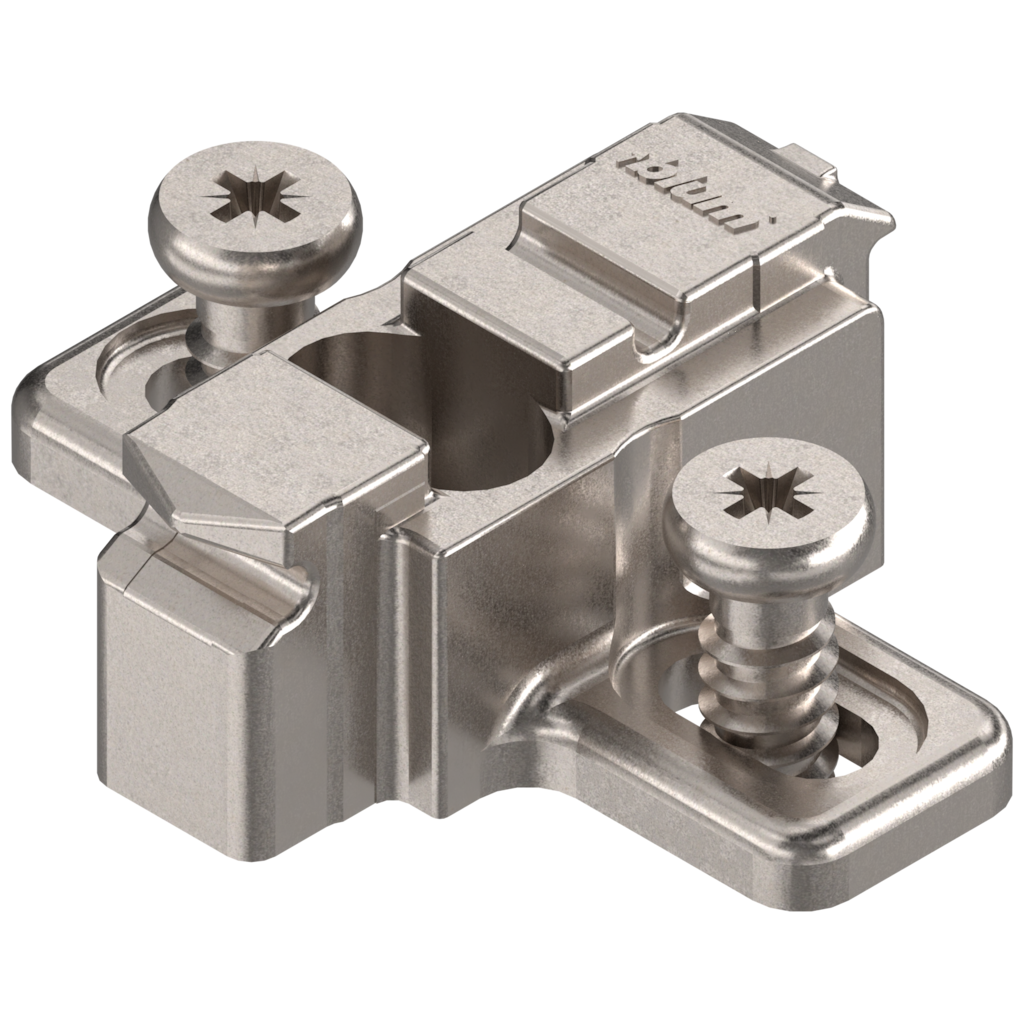

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 02328083
Part no.: 175L8190 MPL V250 NI
Box qty: 250 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 9 mm
  • fixing method: for screwing on with pre-mounted system screws
  • height adjustment type: with elongated hole
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
CLIP mounting plate, cruciform, 9 mm, zinc, for screwing on with pre-mounted system screws, HA: elongated hole, Nickel plated
Ident no: 02328083 Part no.: 175L8190 MPL V250 NI Box qty: 250 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 9 mm
  • fixing method: for screwing on with pre-mounted system screws
  • height adjustment type: with elongated hole
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Montageplatte gewährleistet eine stabile und sichere Befestigung von Scharnieren. Sie ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion. Dank des bewährten CLIP-Mechanismus lässt sich die Front werkzeuglos am Korpus montieren und demontieren.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
9 mm
fixing method
for screwing on with pre-mounted system screws
height adjustment type
with elongated hole
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

perm_identity Log in Register now
