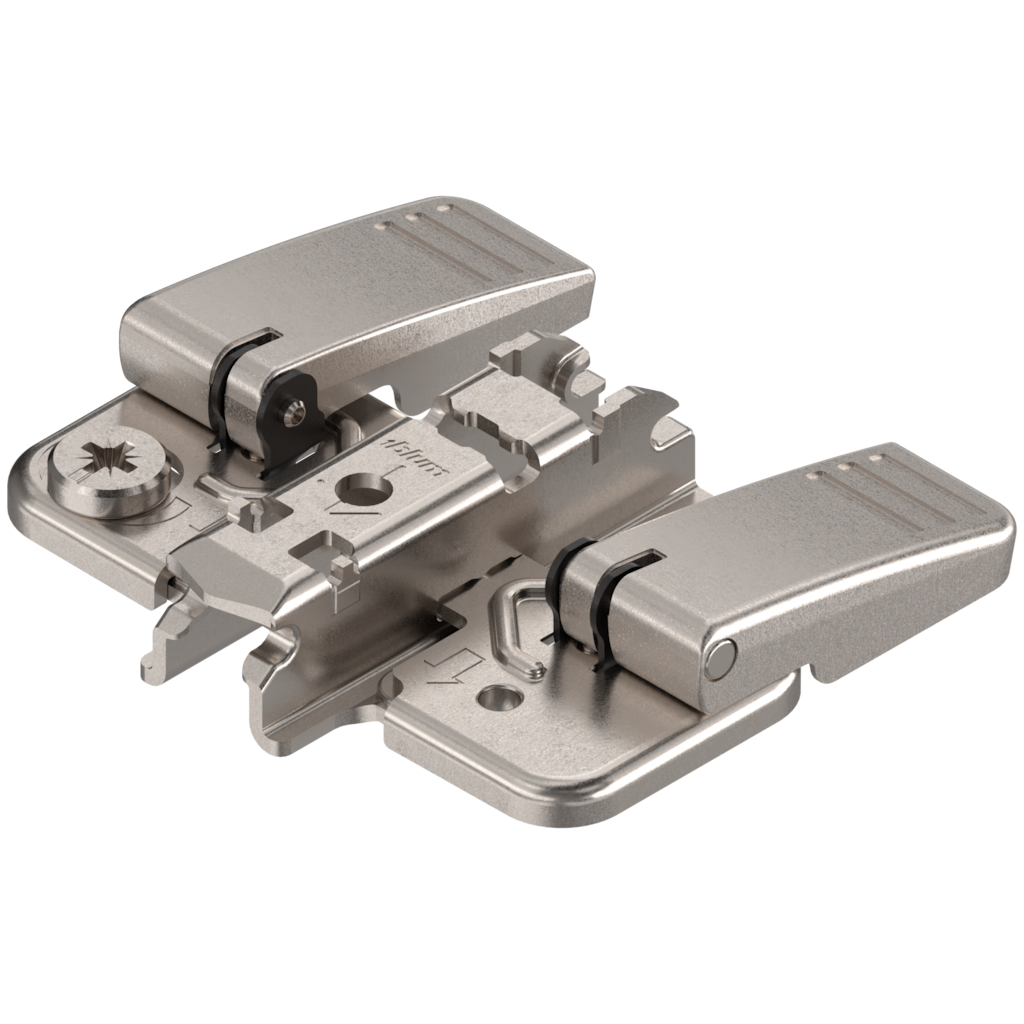

CLIP mounting plate cruciform

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 02849643
Part no.: 174H7130I DUEPL V50 NI
Box qty: 50 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 3 mm
  • fixing method: tool-free with INSERTA
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform

CLIP mounting plate cruciform

  • colour/surface: nickel plated
  • mounting plate spacing: 3 mm
  • fixing method: tool-free with INSERTA
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
Ident no: 02849643 Part no.: 174H7130I DUEPL V50 NI Box qty: 50 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
3 mm
diameter of fixing hole
5.00 mm
fixing method
tool-free with INSERTA
