CLIP mounting plate cruciform

chevron_left Back

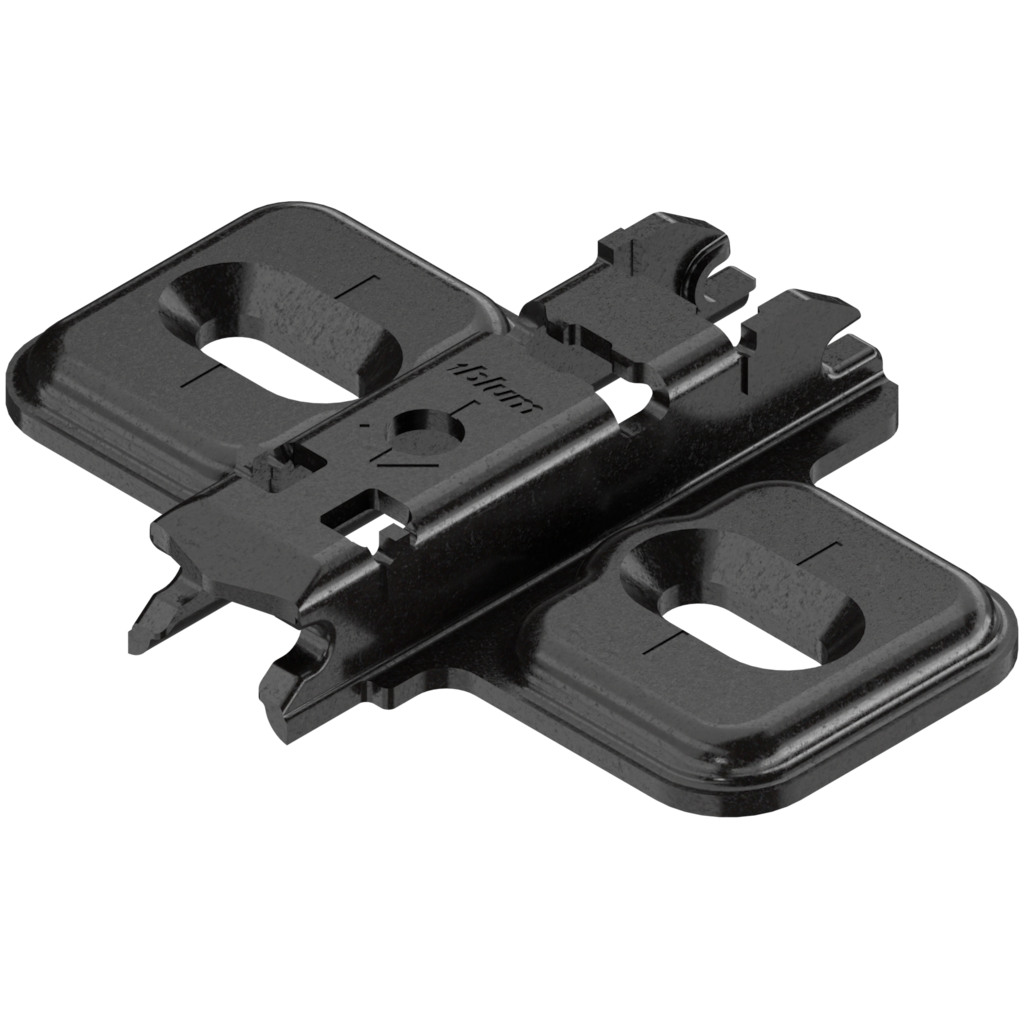

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 03647445
Part no.: 173L6100 MPL V500 ONS
Box qty: 500 pcs
  • colour/surface: onyx black
  • mounting plate spacing: 0 mm
  • fixing method: for screwing on with chipboard screws
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
CLIP mounting plate, cruciform, 0 mm, steel, for screwing on with chipboard screws, HA: elongated hole, Onyx black
Ident no: 03647445 Part no.: 173L6100 MPL V500 ONS Box qty: 500 pcs
  • colour/surface: onyx black
  • mounting plate spacing: 0 mm
  • fixing method: for screwing on with chipboard screws
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Montageplatte gewährleistet eine stabile und sichere Befestigung von Scharnieren. Sie ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion. Dank des bewährten CLIP-Mechanismus lässt sich die Front werkzeuglos am Korpus montieren und demontieren.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
onyx black
mounting plate spacing
0 mm
fixing method
for screwing on with chipboard screws
height adjustment type
with elongated hole
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

perm_identity Log in Register now
