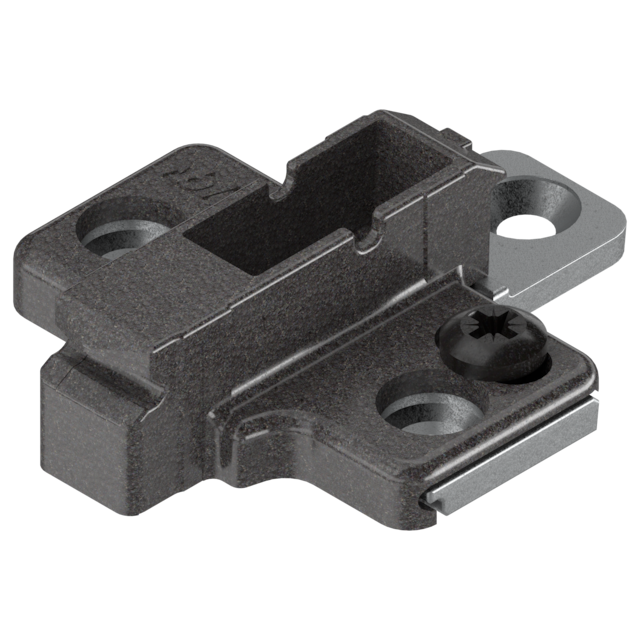

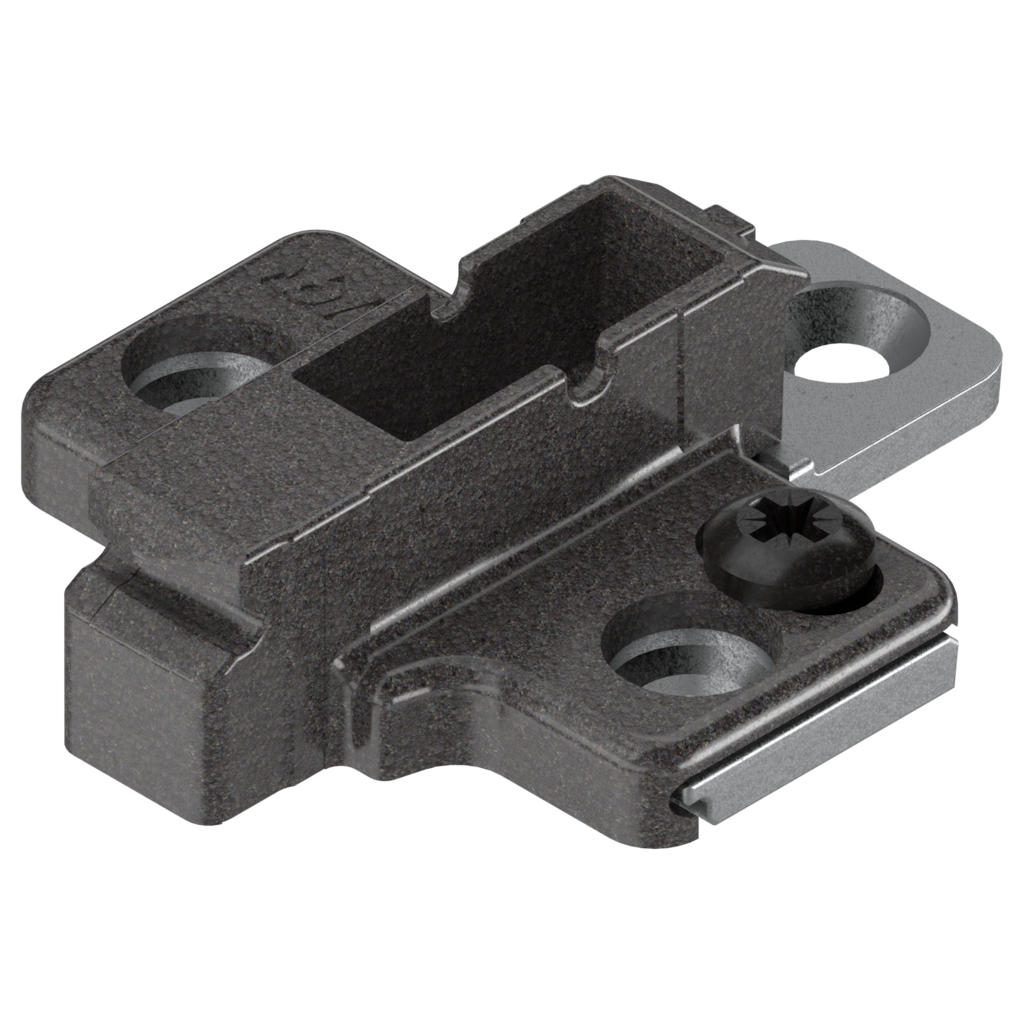

CLIP mounting plate cruciform

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 05286568
Part no.: 175H9160 MPL V50 ONS
Box qty: 50 pcs
  • colour/surface: onyx black
  • mounting plate spacing: 6 mm
  • fixing method: for screwing on with system screws
  • height adjustment type: With screw
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform

CLIP mounting plate cruciform

  • colour/surface: onyx black
  • mounting plate spacing: 6 mm
  • fixing method: for screwing on with system screws
  • height adjustment type: With screw
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
Ident no: 05286568 Part no.: 175H9160 MPL V50 ONS Box qty: 50 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
onyx black
mounting plate spacing
6 mm
fixing method
for screwing on with system screws
height adjustment type
With screw
