CLIP mounting plate cruciform

chevron_left Back

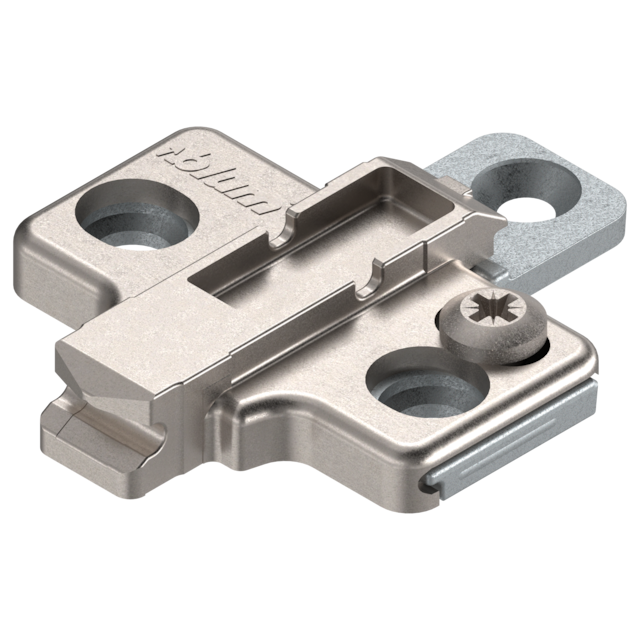

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 06764113
Part no.: 175H9100 MPL V500 NI
Box qty: 500 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: for screwing on with system screws
  • height adjustment type: With screw
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
CLIP mounting plate, cruciform, 0 mm, zinc, for screwing on with system screws, Nickel plated
Ident no: 06764113 Part no.: 175H9100 MPL V500 NI Box qty: 500 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: for screwing on with system screws
  • height adjustment type: With screw
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
0 mm
fixing method
for screwing on with system screws
height adjustment type
With screw
