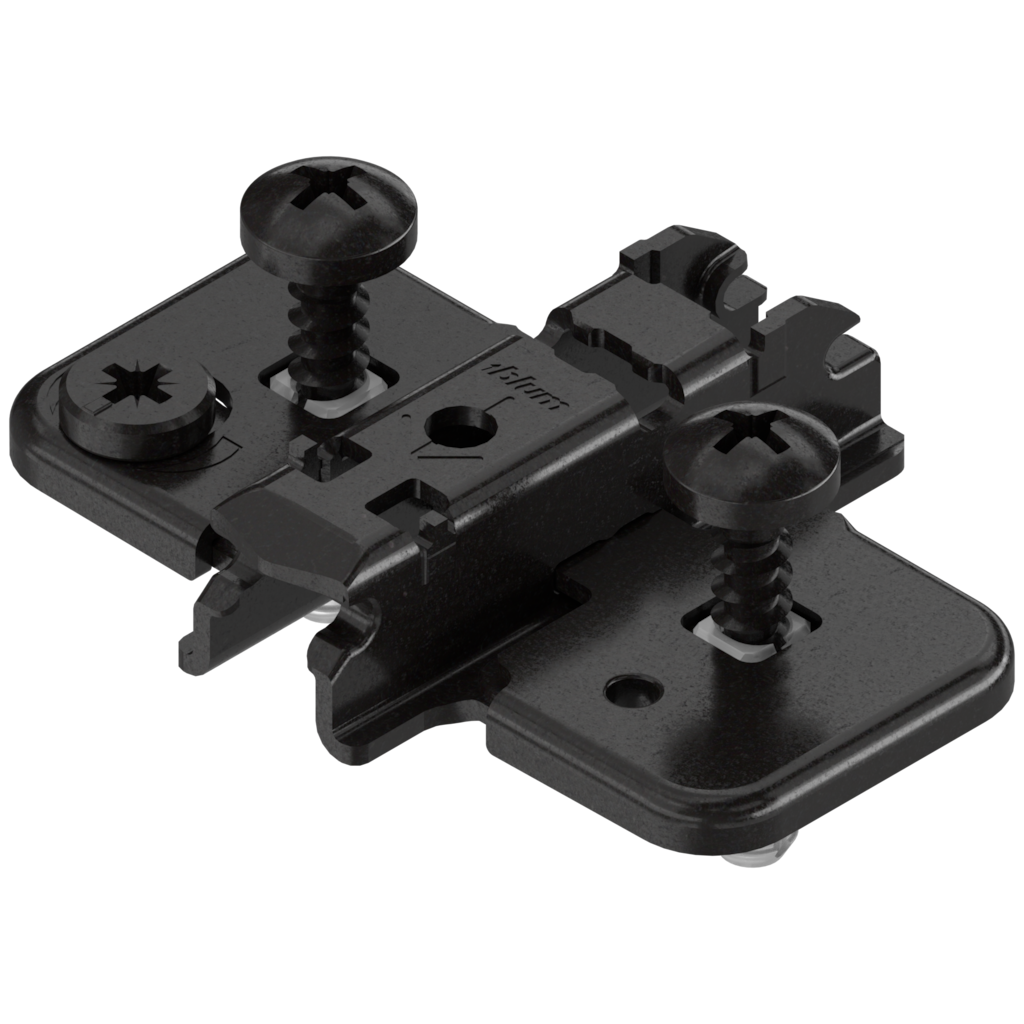

CLIP mounting plate cruciform

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 06868479
Part no.: 174H7130E DUEPL*V500 ONS
Box qty: 500 pcs
  • colour/surface: onyx black
  • mounting plate spacing: 3 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform

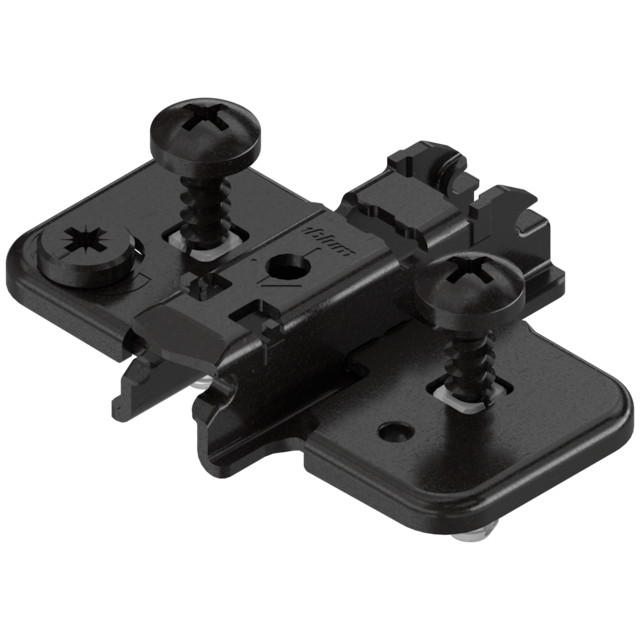

CLIP mounting plate cruciform

  • colour/surface: onyx black
  • mounting plate spacing: 3 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
Ident no: 06868479 Part no.: 174H7130E DUEPL*V500 ONS Box qty: 500 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

Die Montageplatte gewährleistet eine stabile und sichere Befestigung von Scharnieren. Sie ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion. Dank des bewährten CLIP-Mechanismus lässt sich die Front werkzeuglos am Korpus montieren und demontieren.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
onyx black
mounting plate spacing
3 mm
diameter of fixing hole
5.00 mm
fixing method
with EXPANDO split dowels
