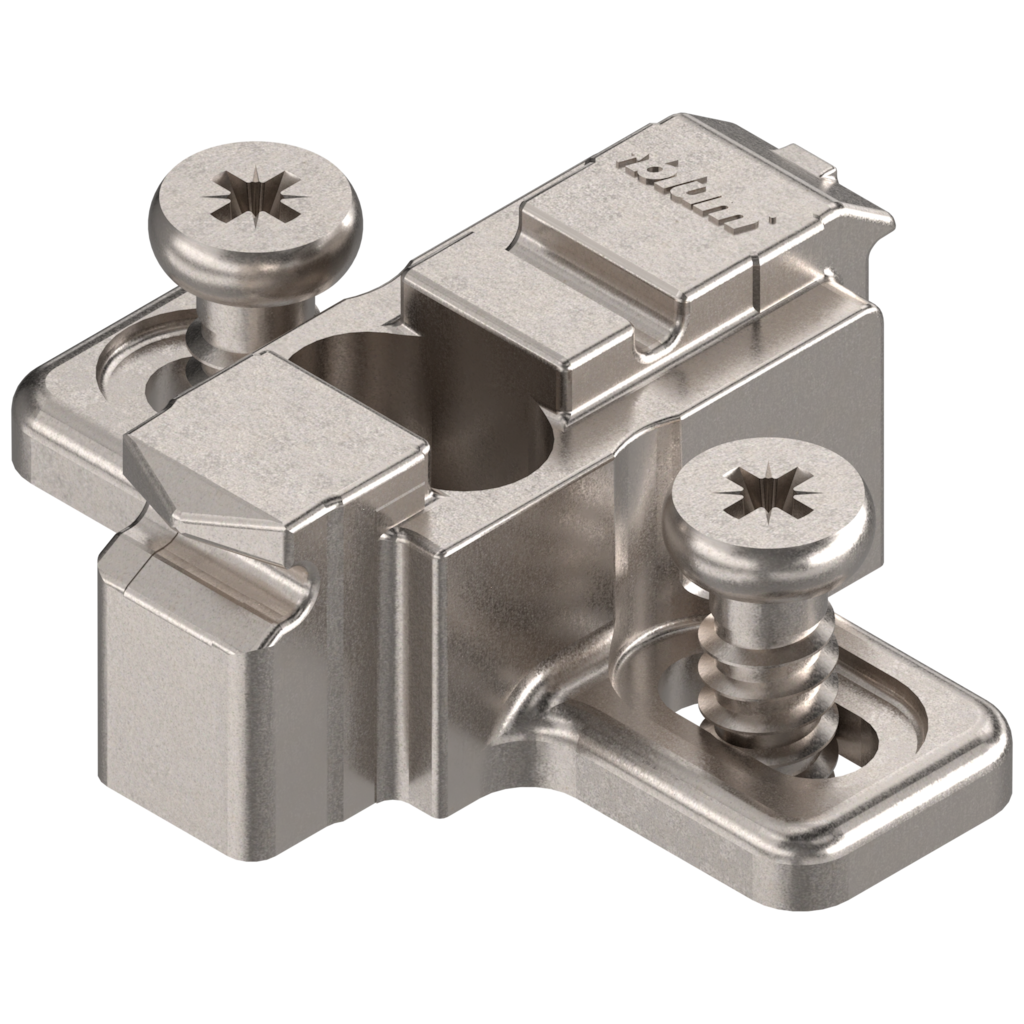

CLIP mounting plate cruciform

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 07205693
Part no.: 175L8190 MPL V50 NI
Box qty: 50 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 9 mm
  • fixing method: for screwing on with pre-mounted system screws
  • height adjustment type: with elongated hole
  • hinge system: CLIP
  • material: zinc
  • mounting system: CLIP
  • shape: cruciform
  • suitable for dual application: no

CLIP mounting plate cruciform

  • colour/surface: nickel plated
  • mounting plate spacing: 9 mm
  • fixing method: for screwing on with pre-mounted system screws
  • height adjustment type: with elongated hole
  • hinge system: CLIP
  • material: zinc
  • mounting system: CLIP
  • shape: cruciform
  • suitable for dual application: no
Ident no: 07205693 Part no.: 175L8190 MPL V50 NI Box qty: 50 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The mounting plate ensures stable and secure hinge attachment. It allows precise adjustment, simplifies mounting of doors and fronts, and ensures top-quality performance. Thanks to the tried and tested CLIP mechanism, the front can be attached to and removed from the cabinet without tools.
  • Quick and easy installation thanks to pre-mounted screws
  • Practical CLIP assembly method
description Technical data expand_more

Technical data

colour/surface
nickel plated
mounting plate spacing
9 mm
fixing method
for screwing on with pre-mounted system screws
height adjustment type
with elongated hole
hinge system
CLIP
