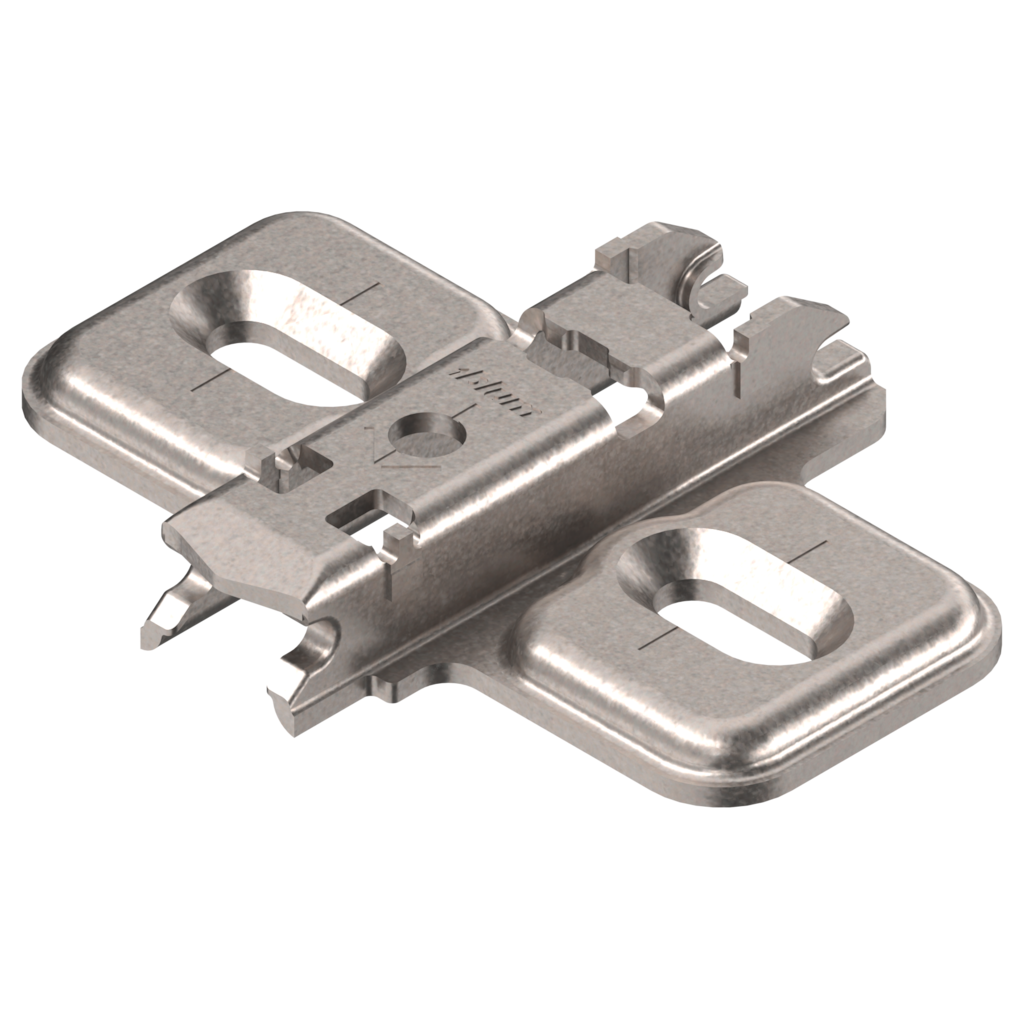

CLIP mounting plate cruciform

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 07633696
Part no.: 173L6100 MPL V500BCOR
Box qty: 500 pcs
  • colour/surface: BCOR surface protection
  • mounting plate spacing: 0 mm
  • fixing method: for screwing on with chipboard screws
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform

CLIP mounting plate cruciform

  • colour/surface: BCOR surface protection
  • mounting plate spacing: 0 mm
  • fixing method: for screwing on with chipboard screws
  • height adjustment type: with elongated hole
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
Ident no: 07633696 Part no.: 173L6100 MPL V500BCOR Box qty: 500 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
BCOR surface protection
mounting plate spacing
0 mm
fixing method
for screwing on with chipboard screws
height adjustment type
with elongated hole
