CLIP mounting plate cruciform

chevron_left Back

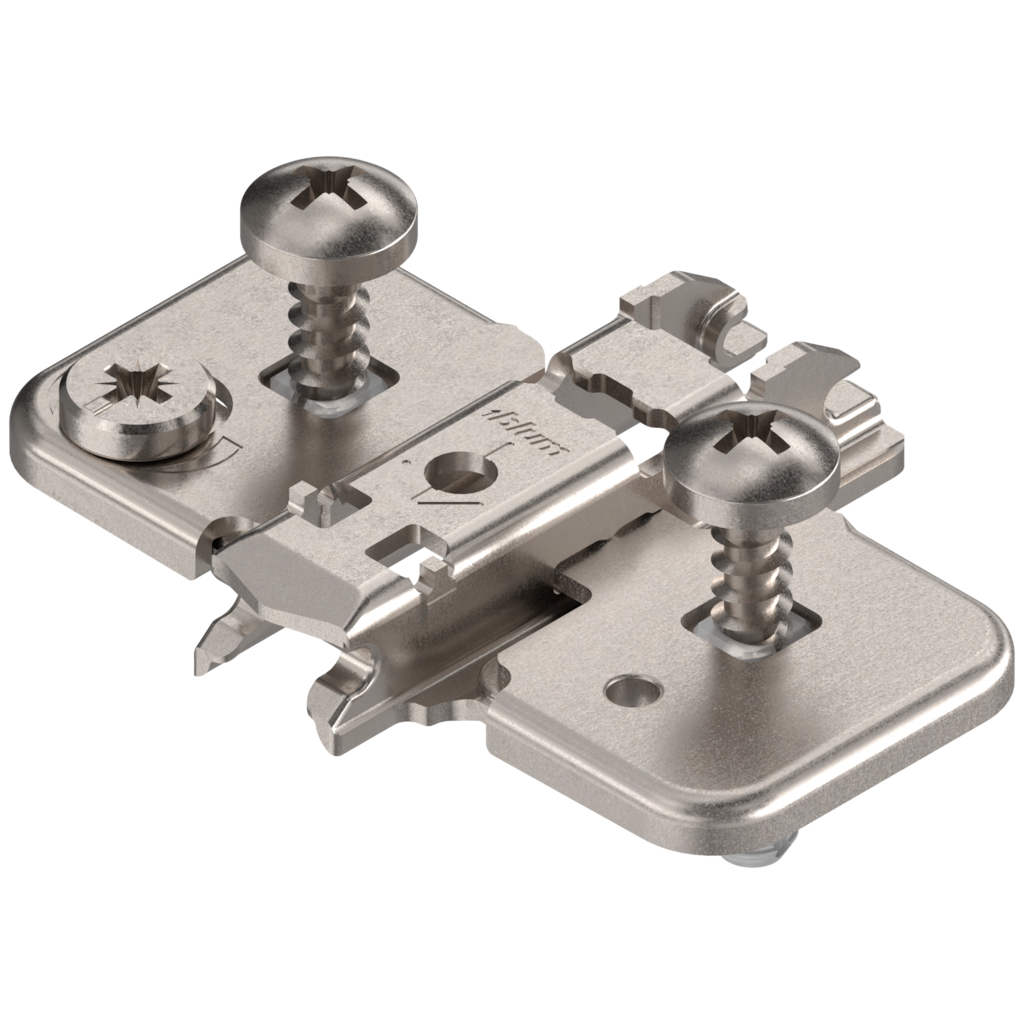

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 09340977
Part no.: 174H7100E DUEPL V500 NI
Box qty: 500 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
CLIP mounting plate, cruciform, 0 mm, steel, with EXPANDO split dowels, HA: cam, Nickel plated
Ident no: 09340977 Part no.: 174H7100E DUEPL V500 NI Box qty: 500 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The mounting plate ensures stable and secure hinge attachment. It allows precise adjustment, simplifies mounting of doors and fronts, and ensures top-quality performance. Thanks to the tried and tested CLIP mechanism, the front can be attached to and removed from the cabinet without tools.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
0 mm
diameter of fixing hole
5.00 mm
fixing method
with EXPANDO split dowels
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

person Log in Register now
