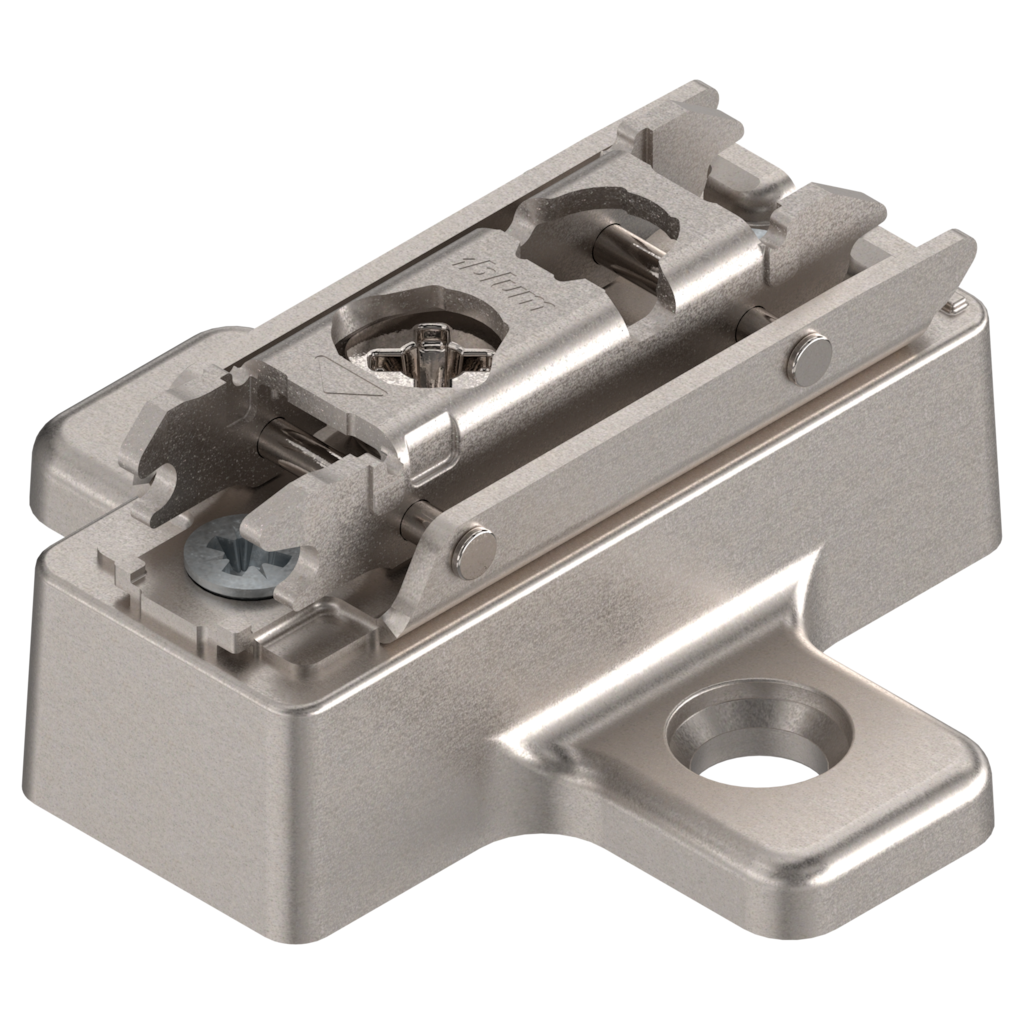

CLIP mounting plate cruciform

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 26360263
Part no.: 173H9100.08MPL 1/2" NI
Box qty: 250 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 13 mm
  • fixing method: for screwing on with system screws
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform

CLIP mounting plate cruciform

  • colour/surface: nickel plated
  • mounting plate spacing: 13 mm
  • fixing method: for screwing on with system screws
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
Ident no: 26360263 Part no.: 173H9100.08MPL 1/2" NI Box qty: 250 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
13 mm
fixing method
for screwing on with system screws
height adjustment type
with cam
