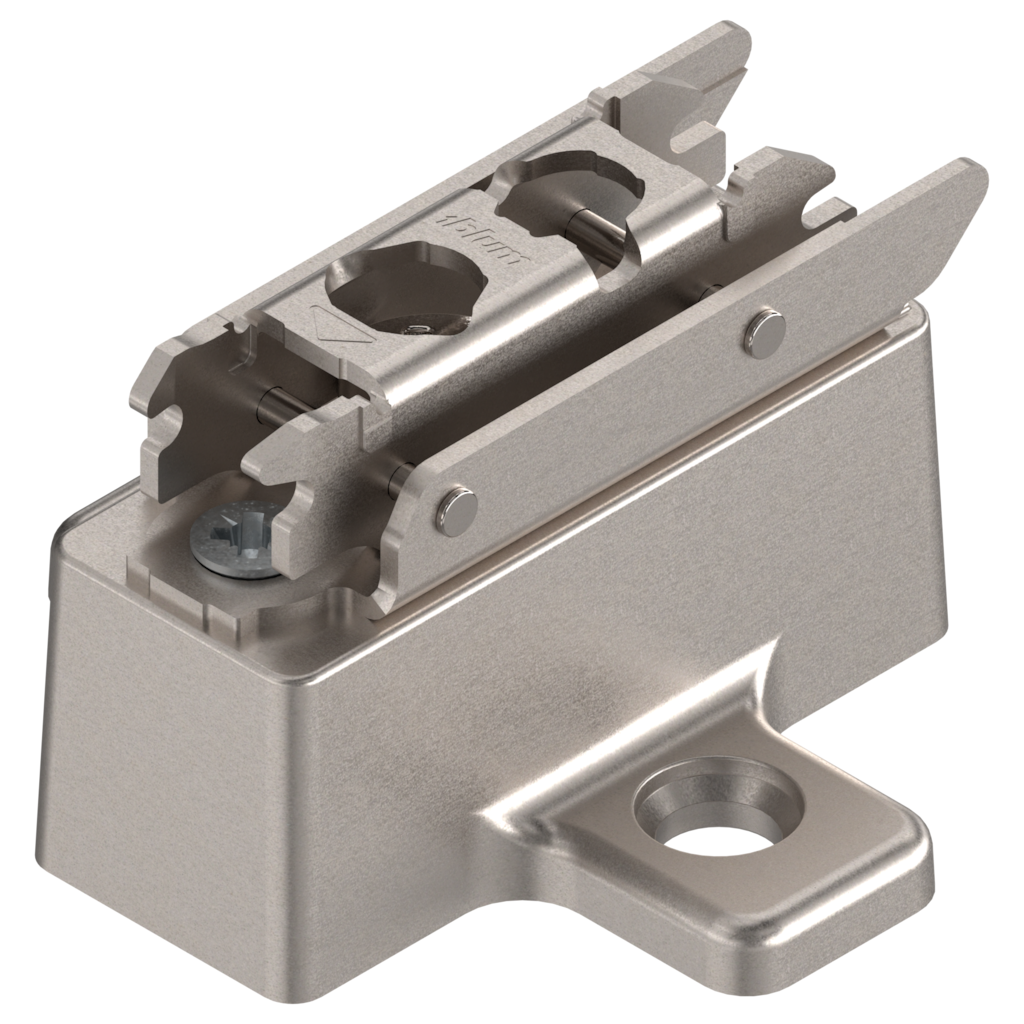

CLIP mounting plate cruciform

CLIP mounting plate cruciform
CLIP mounting plate cruciform
Ident no: 26360513
Part no.: 173H9130.14MPL 7/8" NI
Box qty: 250 pcs
  • colour/surface: nickel plated
  • mounting plate spacing: 22 mm
  • fixing method: for screwing on with system screws
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform

CLIP mounting plate cruciform

  • colour/surface: nickel plated
  • mounting plate spacing: 22 mm
  • fixing method: for screwing on with system screws
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: cruciform
Ident no: 26360513 Part no.: 173H9130.14MPL 7/8" NI Box qty: 250 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
22 mm
fixing method
for screwing on with system screws
height adjustment type
with cam
