CLIP mounting plate horizontal

chevron_left Back
CLIP mounting plate horizontal
CLIP mounting plate horizontal
Ident no: 02826123
Part no.: 177H3130E DUEPL V500 ONS
Box qty: 500 pcs
  • type: mounting plate
  • colour/surface: onyx black
  • mounting plate spacing: 3 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal

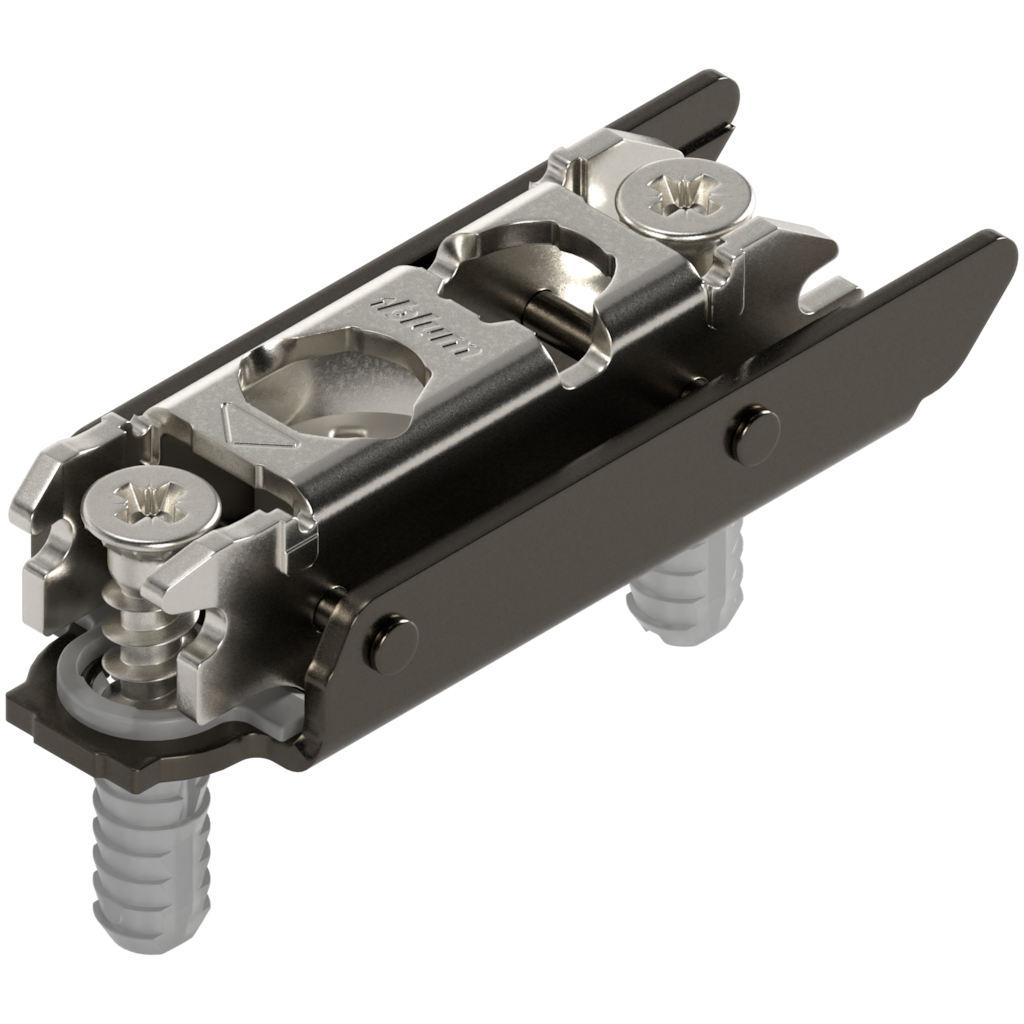

CLIP mounting plate, horizontal, 3 mm, steel, with EXPANDO split dowels, HA: cam, Onyx black
Ident no: 02826123 Part no.: 177H3130E DUEPL V500 ONS Box qty: 500 pcs
  • type: mounting plate
  • colour/surface: onyx black
  • mounting plate spacing: 3 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Montageplatte gewährleistet eine stabile und sichere Befestigung von Scharnieren. Sie ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion. Dank des bewährten CLIP-Mechanismus lässt sich die Front werkzeuglos am Korpus montieren und demontieren.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
onyx black
mounting plate spacing
3 mm
diameter of fixing hole
5.00 mm
fixing method
with EXPANDO split dowels
