CLIP mounting plate horizontal

chevron_left Back

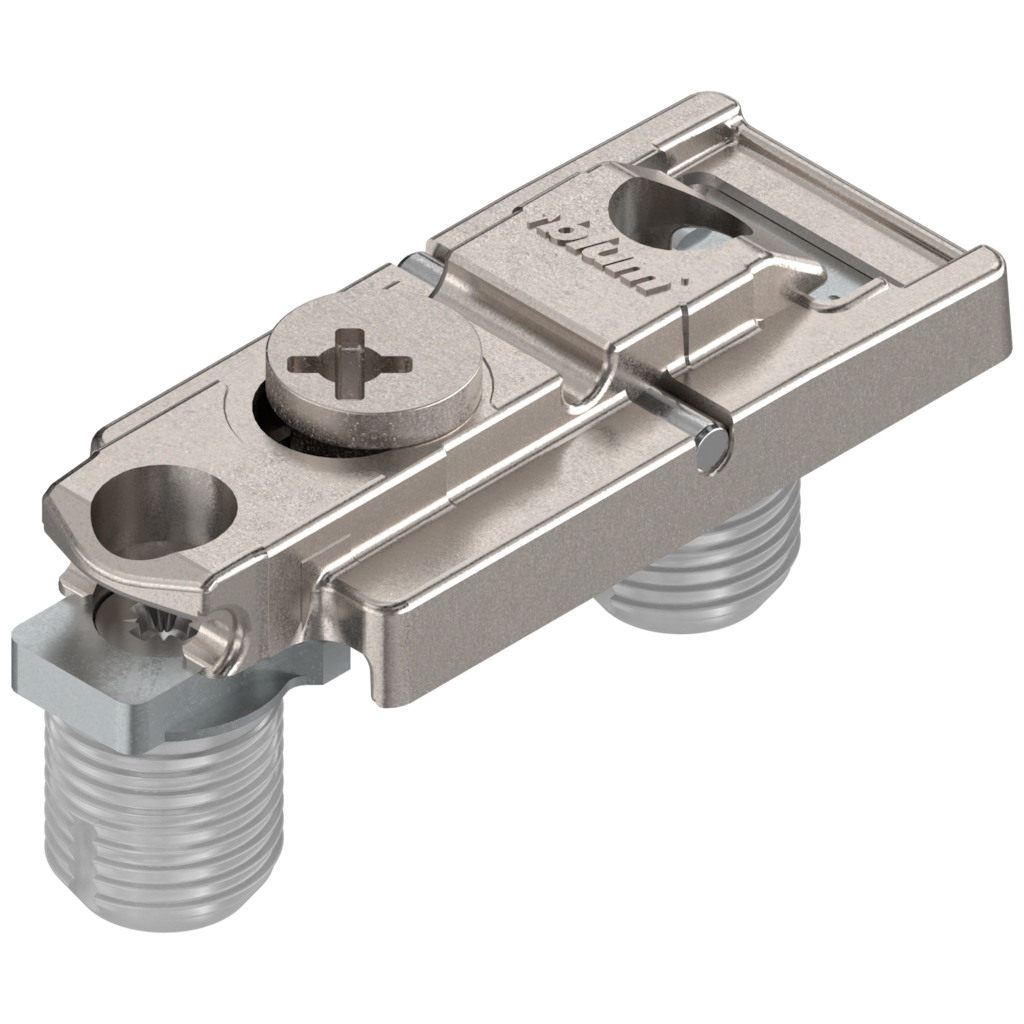

CLIP mounting plate horizontal
CLIP mounting plate horizontal
Ident no: 03283763
Part no.: 177H5100 DUEPL V500 NI
Box qty: 500 pcs
  • type: mounting plate
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: knock-in
  • height adjustment type: with cam
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal
CLIP mounting plate, horizontal, 0 mm, zinc, knock-in, HA: cam, Nickel plated
Ident no: 03283763 Part no.: 177H5100 DUEPL V500 NI Box qty: 500 pcs
  • type: mounting plate
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: knock-in
  • height adjustment type: with cam
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Montageplatte gewährleistet eine stabile und sichere Befestigung von Scharnieren. Sie ermöglicht eine präzise Justierung, vereinfacht die Montage von Türen und Klappen und sorgt für deren optimale Funktion. Dank des bewährten CLIP-Mechanismus lässt sich die Front werkzeuglos am Korpus montieren und demontieren.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
0 mm
diameter of fixing hole
10.00 mm
fixing method
knock-in
