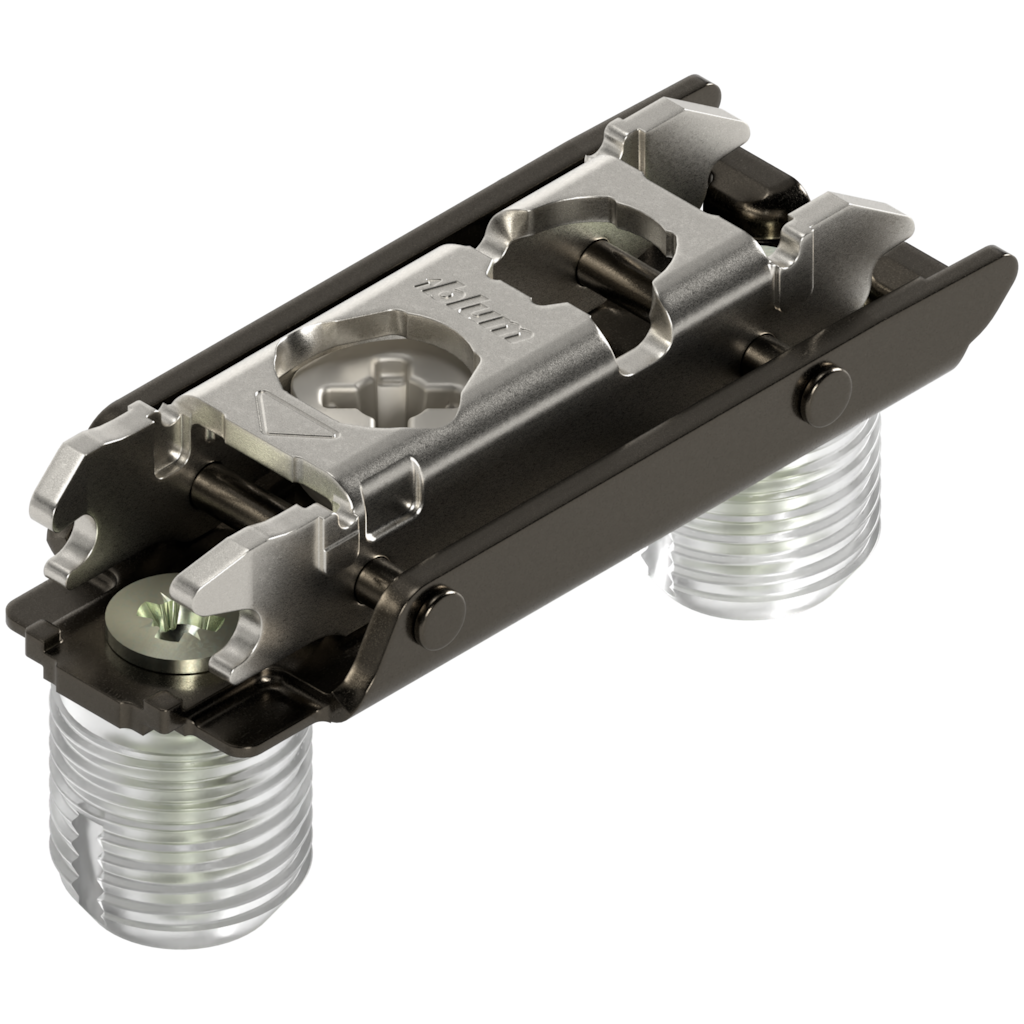

CLIP mounting plate horizontal

CLIP mounting plate horizontal
CLIP mounting plate horizontal
Ident no: 03712735
Part no.: 177H3100 DUEPL V500 ONS
Box qty: 500 pcs
  • type: mounting plate
  • colour/surface: onyx black
  • mounting plate spacing: 0 mm
  • fixing method: knock-in
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal

CLIP mounting plate horizontal

  • type: mounting plate
  • colour/surface: onyx black
  • mounting plate spacing: 0 mm
  • fixing method: knock-in
  • height adjustment type: with cam
  • material: steel
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal
Ident no: 03712735 Part no.: 177H3100 DUEPL V500 ONS Box qty: 500 pcs
