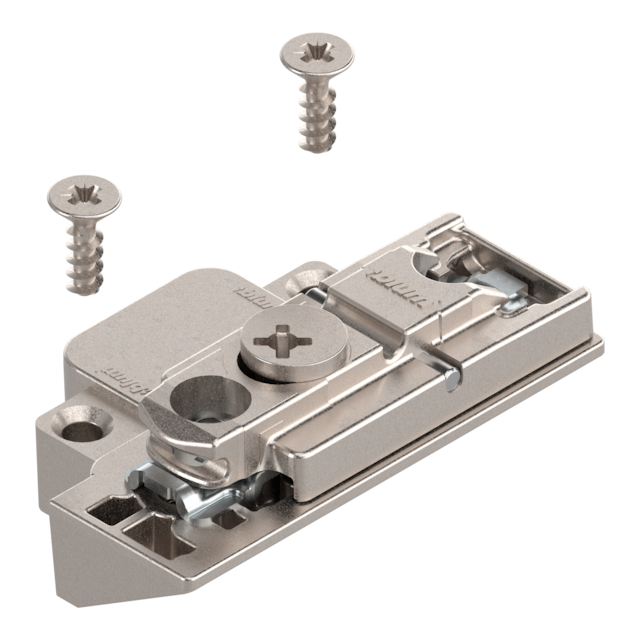

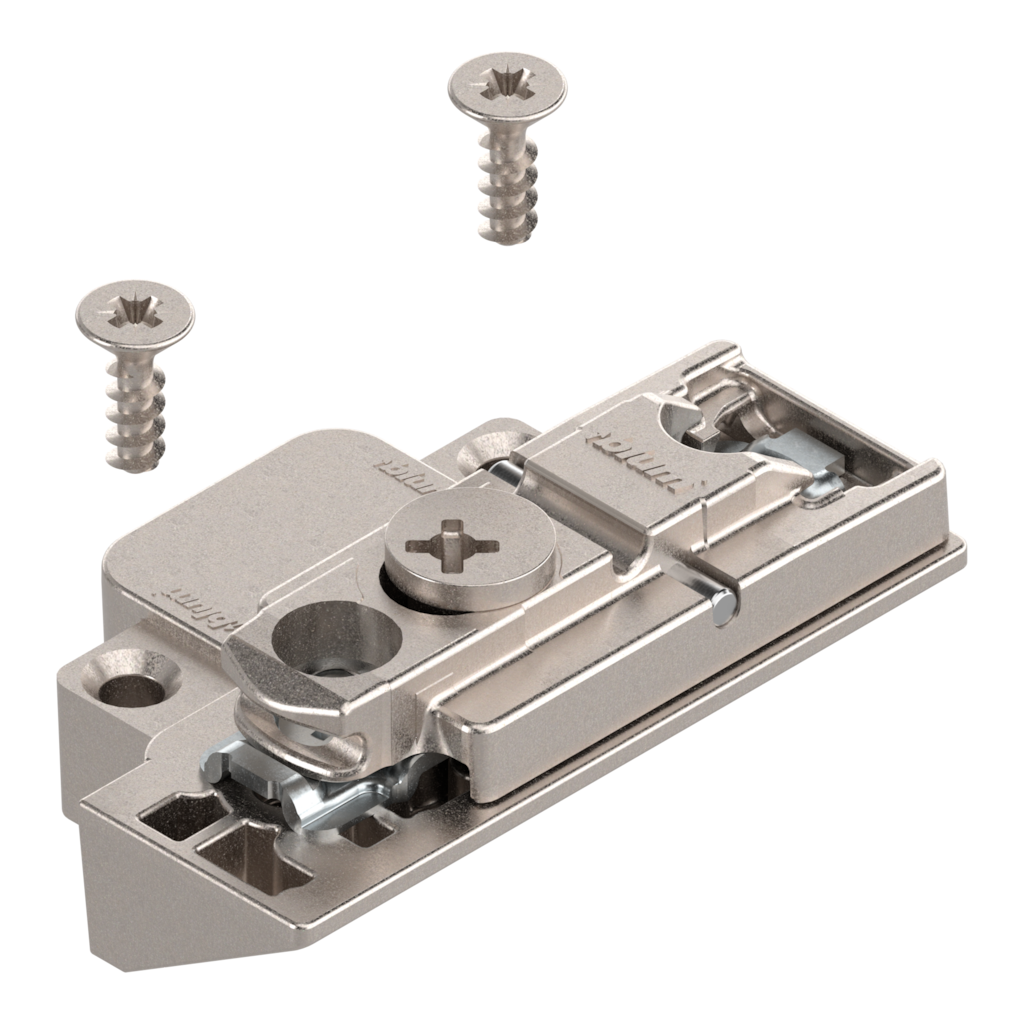

CLIP mounting plate horizontal

chevron_left Back
CLIP mounting plate horizontal
CLIP mounting plate, horizontal, zinc, for screwing on, HA: cam, right, for narrow alu frames, Nickel plated
Ident no: 06796243
Part no.: 175H5B00 AD-P R V50 NI
Box qty: 50 pcs
  • colour/surface: nickel plated
  • fixing method: for screwing on
  • height adjustment type: with cam
  • hinge system: CLIP
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal

CLIP mounting plate, horizontal, zinc, for screwing on, HA: cam, right, for narrow alu frames, Nickel plated

Ident no: 06796243 Part no.: 175H5B00 AD-P R V50 NI Box qty: 50 pcs
  • colour/surface: nickel plated
  • fixing method: for screwing on
  • height adjustment type: with cam
  • hinge system: CLIP
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The mounting plate ensures stable and secure hinge attachment. It allows precise adjustment, simplifies mounting of doors and fronts, and ensures top-quality performance. Thanks to the tried and tested CLIP mechanism, the front can be attached to and removed from the cabinet without tools.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
Front fixing
for screwing on
fixing method
for screwing on
height adjustment type
with cam
