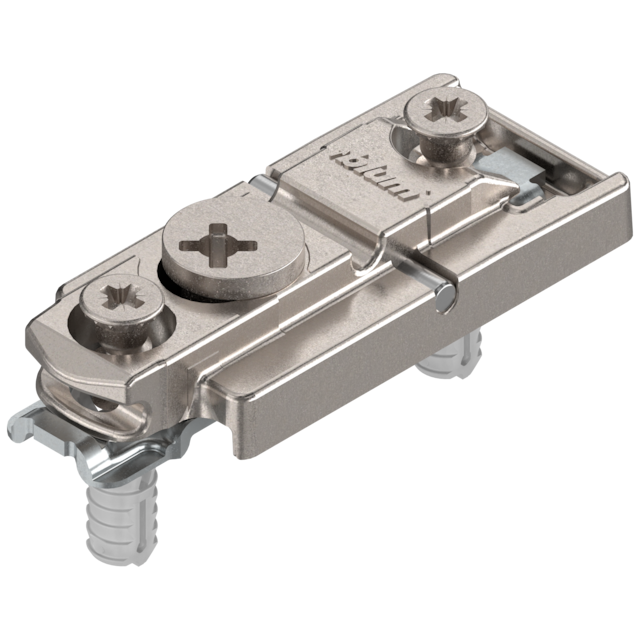

CLIP mounting plate horizontal

CLIP mounting plate horizontal
CLIP mounting plate horizontal
Ident no: 08115693
Part no.: 177H5400E DUEPL V500 NI
Box qty: 500 pcs
  • type: mounting plate
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with cam
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal

CLIP mounting plate horizontal

  • type: mounting plate
  • colour/surface: nickel plated
  • mounting plate spacing: 0 mm
  • fixing method: with EXPANDO split dowels
  • height adjustment type: with cam
  • material: zinc
  • mounting system: CLIP
  • suitable for dual application: no
  • shape: horizontal
Ident no: 08115693 Part no.: 177H5400E DUEPL V500 NI Box qty: 500 pcs
error_outline

Please log in to see prices and availability.
description Technical data expand_more

Technical data

type
mounting plate
colour/surface
nickel plated
mounting plate spacing
0 mm
diameter of fixing hole
5.00 mm
fixing method
with EXPANDO split dowels
