CLIP mounting plate spacing for screwing on

chevron_left Back

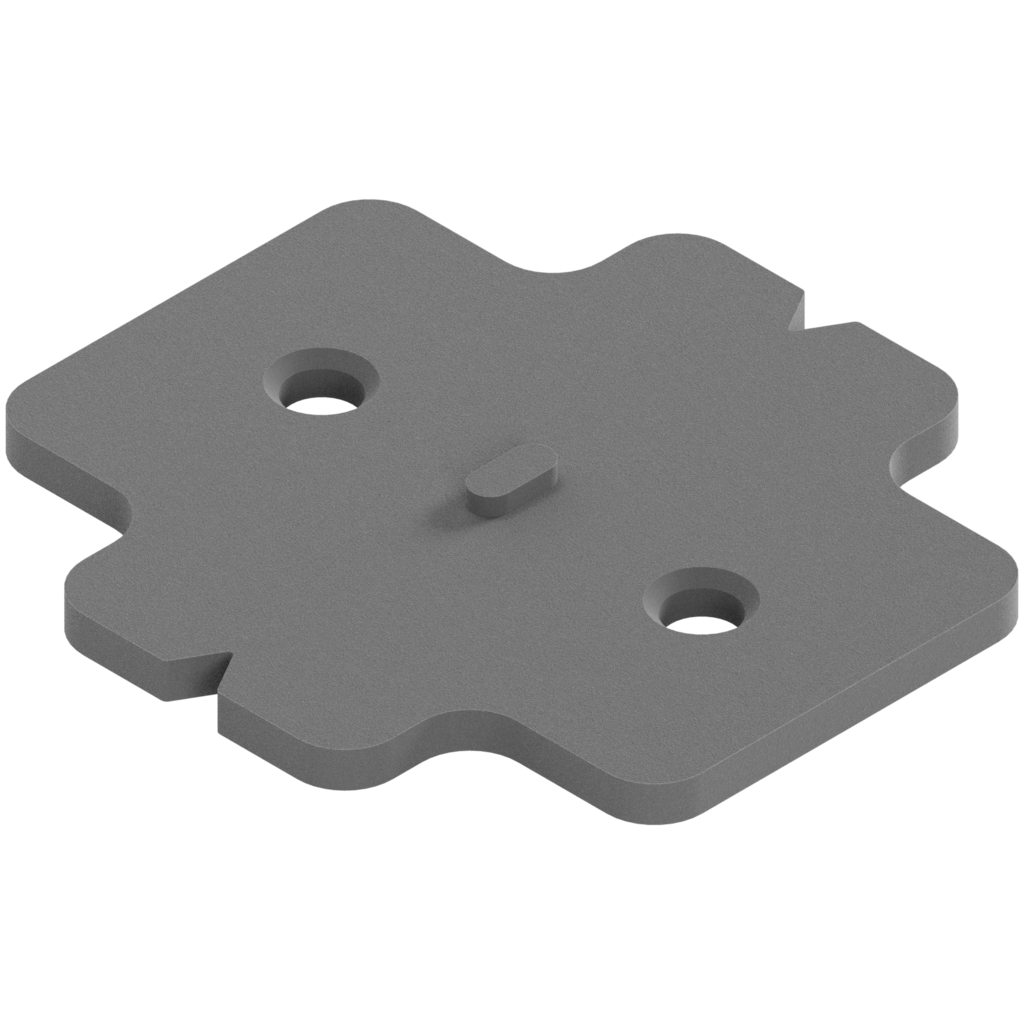

CLIP mounting plate spacing for screwing on
Mounting plate spacing, cruciform, screw-on version, spacer thickness: 3 mm, R7037 dust grey
Ident no: 26320470
Part no.: 181.6130 DIST-PL 50R737
Box qty: 50 pcs
  • colour/surface: RAL 7037 dust grey
  • fixing method: for screwing on

Mounting plate spacing, cruciform, screw-on version, spacer thickness: 3 mm, R7037 dust grey

Ident no: 26320470 Part no.: 181.6130 DIST-PL 50R737 Box qty: 50 pcs
  • colour/surface: RAL 7037 dust grey
  • fixing method: for screwing on
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Die Montageplatten-Distanz gibt die Höhe der Montageplatte in mm an.
description Technical data expand_more

Technical data

type
mounting plate spacing
colour/surface
RAL 7037 dust grey
fixing method
for screwing on
height
57 mm
length
54 mm
