CLIP opening angle stop 86°

chevron_left Back

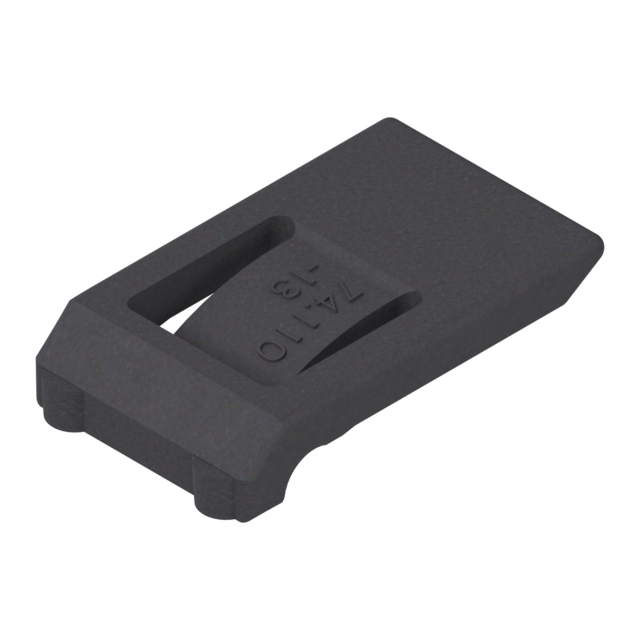

CLIP opening angle stop 86°
CLIP opening angle stop 86°
Ident no: 05948404
Part no.: 74.1103 BEGR V5000 S
Box qty: 5000 pcs
  • limiting dimension: 86°
  • colour/surface: black
86° opening angle stop for 107° hinge, Black
Ident no: 05948404 Part no.: 74.1103 BEGR V5000 S Box qty: 5000 pcs
  • limiting dimension: 86°
  • colour/surface: black
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
opening angle stop
lift system
CLIP
limiting dimension
86°
colour/surface
black
fixing method
for sliding in
