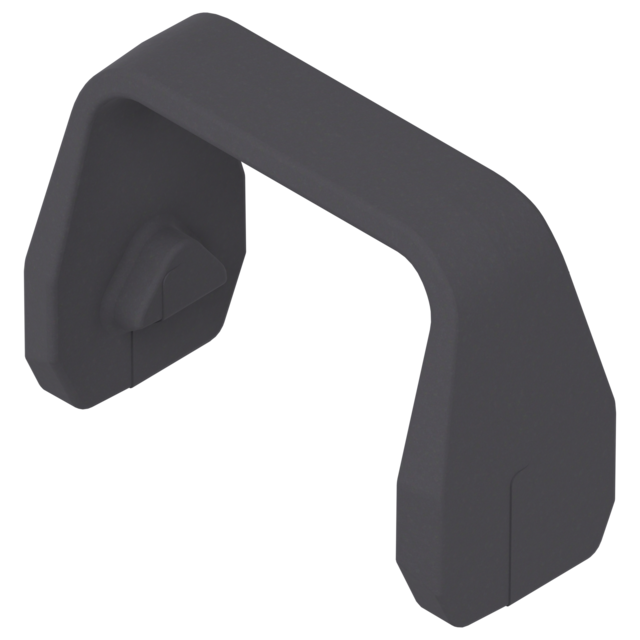

CLIP opening angle stop 92°
CLIP opening angle stop 92°
Ident no: 01283507
Part no.: 70T7553.09BEGR V250 TGR
Box qty: 250 pcs
  • limiting dimension: 92°
  • colour/surface: dark grey
92° opening angle stop for 155° wide angle hinge, deep grey
Ident no: 01283507 Part no.: 70T7553.09BEGR V250 TGR Box qty: 250 pcs
  • limiting dimension: 92°
  • colour/surface: dark grey
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The opening angle stop checks the maximum opening angle of the front. It is used to prevent collisions with other furniture parts or walls and ensures safe opening.
description Technical data expand_more

Technical data

type
opening angle stop
lift system
CLIP
limiting dimension
92°
colour/surface
dark grey
fixing method
for clipping on
