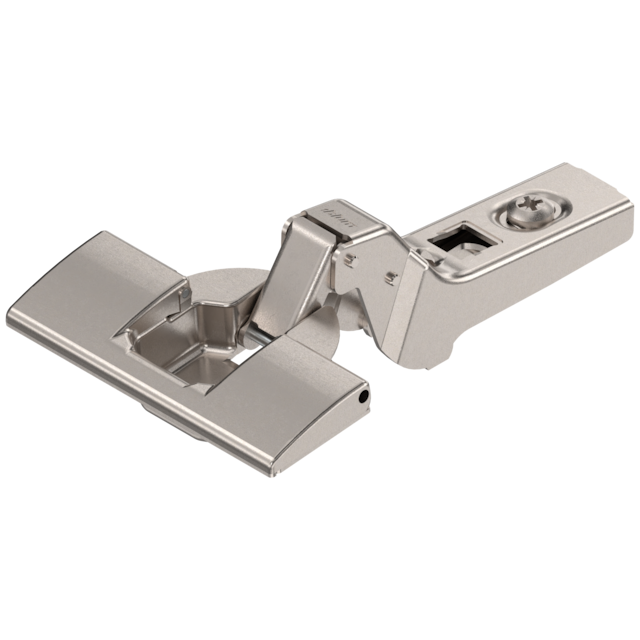

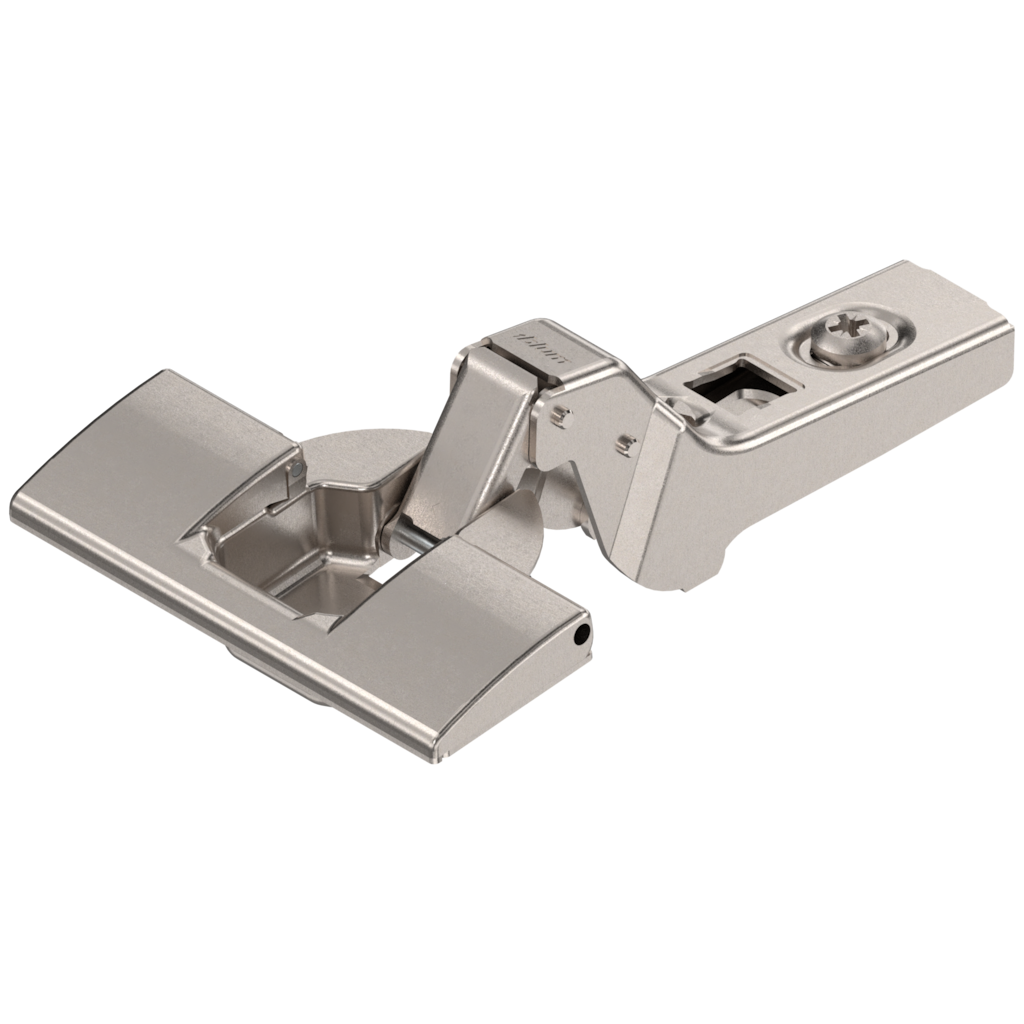

Das Scharnier ist für Standardanwendungen mit Frontstärken bis ca. 24 mm geeignet. Der bewährte CLIP-Mechanismus ermöglicht die einfache, werkzeuglose Scharniermontage der Front am Korpus.
description
Technical data
expand_more
Technical data
type
standard hinge
boss fixing
tool-free with INSERTA
closing mechanism
with spring
colour/surface
nickel plated
integrated soft-close mechanism
no
for door material
wood
front type
wooden and wide alu frame door
fixed dimension in factory setting
-7.00 mm
application
inset application
closed hinge
no
hinge system
CLIP
material
steel
motion technology
suitable for TIP-ON
mounting system
CLIP
opening angle
100 °
pivoting system
100°
scope of delivery
1x standard hinge
depth adjustment type
With screw
suitable for lift system type
HK-XS
