CLIP top aluminium frame door hinge 95°

chevron_left Back

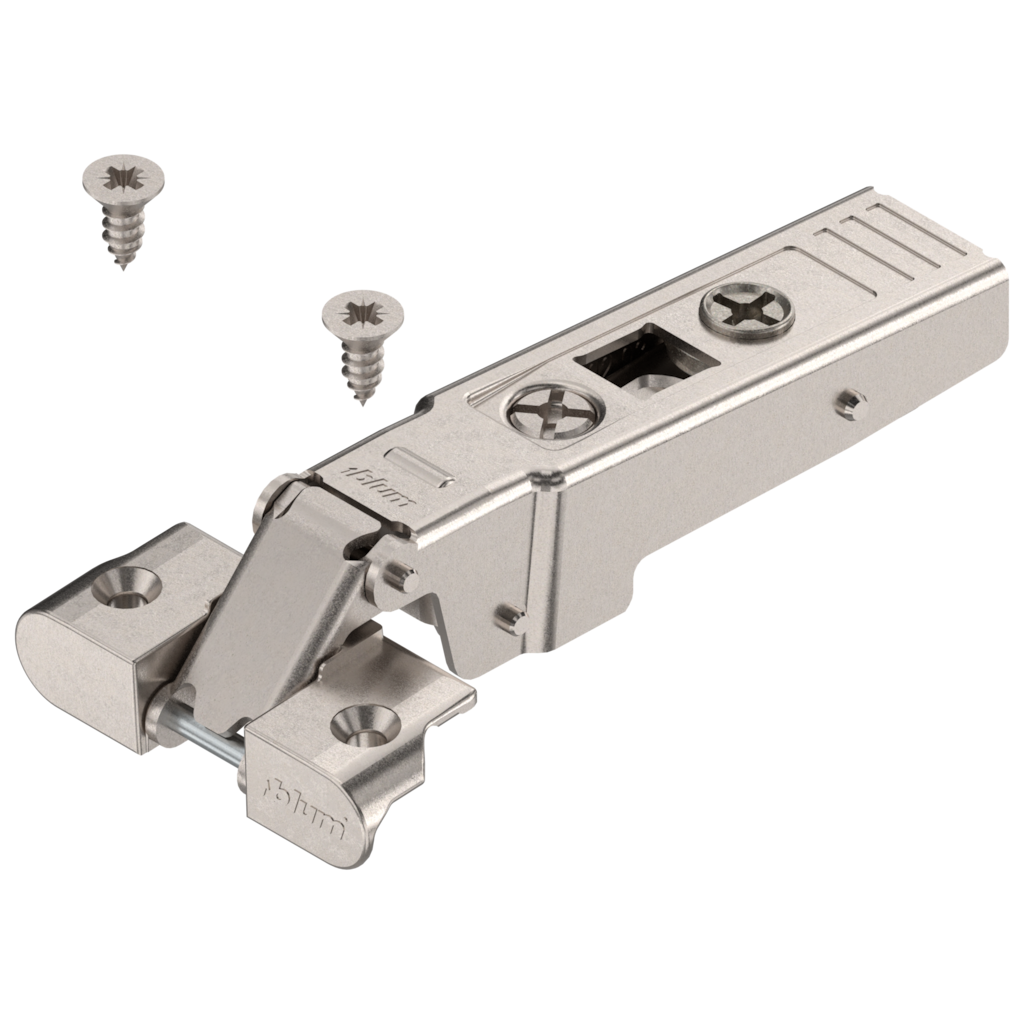

CLIP top aluminium frame door hinge 95°
CLIP top alu frame door hinge 95°, overlay application, unsprung, boss: screw-on, Nickel plated
Ident no: 05948803
Part no.: 70T950A.TLMB V50 NI
Box qty: 50 pcs
  • type: aluminium frame door hinge
  • boss fixing: for screwing on
  • closing mechanism: unsprung
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 95 °

CLIP top alu frame door hinge 95°, overlay application, unsprung, boss: screw-on, Nickel plated

Ident no: 05948803 Part no.: 70T950A.TLMB V50 NI Box qty: 50 pcs
  • type: aluminium frame door hinge
  • boss fixing: for screwing on
  • closing mechanism: unsprung
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 95 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Alurahmenscharnier ist speziell für den Einsatz bei Türen mit schmalem Alurahmen konzipiert. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke.
description Technical data expand_more

Technical data

type
aluminium frame door hinge
boss fixing
for screwing on
closing mechanism
unsprung
colour/surface
nickel plated
integrated soft-close mechanism
no
