CLIP top angled hinge cabinet angle -15°

chevron_left Back

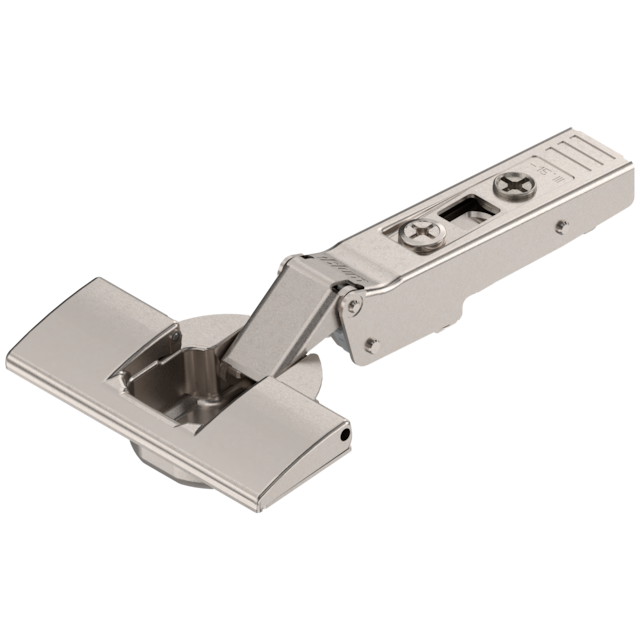

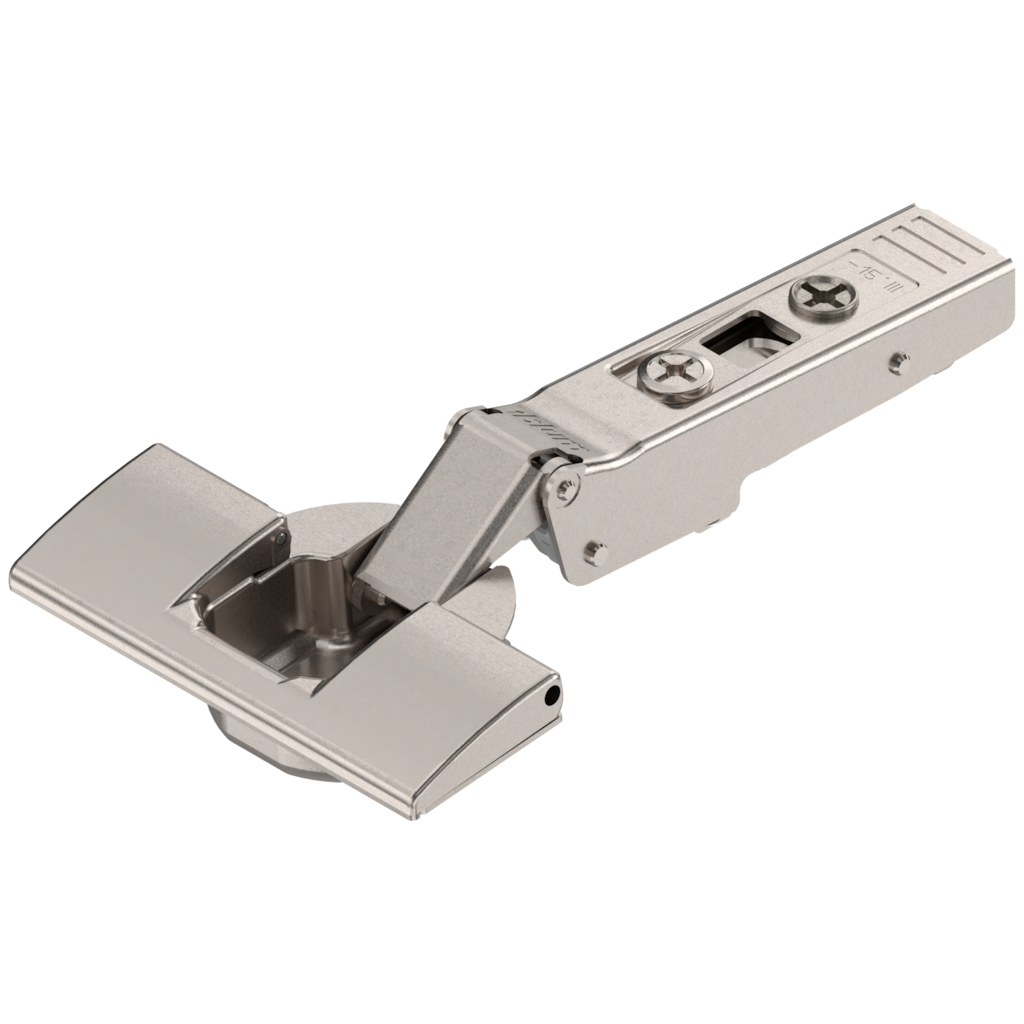

CLIP top angled hinge cabinet angle -15°
CLIP top angled hinge -15° III, max. overlay, boss: tool-free with INSERTA, Nickel plated
Ident no: 06874573
Part no.: 79A5493BT MB15- V50 NI
Box qty: 50 pcs
  • type: angled hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: maximum overlay
  • opening angle: 110 °

CLIP top angled hinge -15° III, max. overlay, boss: tool-free with INSERTA, Nickel plated

Ident no: 06874573 Part no.: 79A5493BT MB15- V50 NI Box qty: 50 pcs
  • type: angled hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: maximum overlay
  • opening angle: 110 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Winkelscharnier eignet sich für Korpusse mit Öffnungswinkeln von -50° bis +50°. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke.
description Technical data expand_more

Technical data

type
angled hinge
boss fixing
tool-free with INSERTA
cabinet angle
-15 °
closing mechanism
with spring
colour/surface
nickel plated
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

person Log in Register now
handyman Assembly instructions expand_more
SpinnerBlum CAD/CAM
