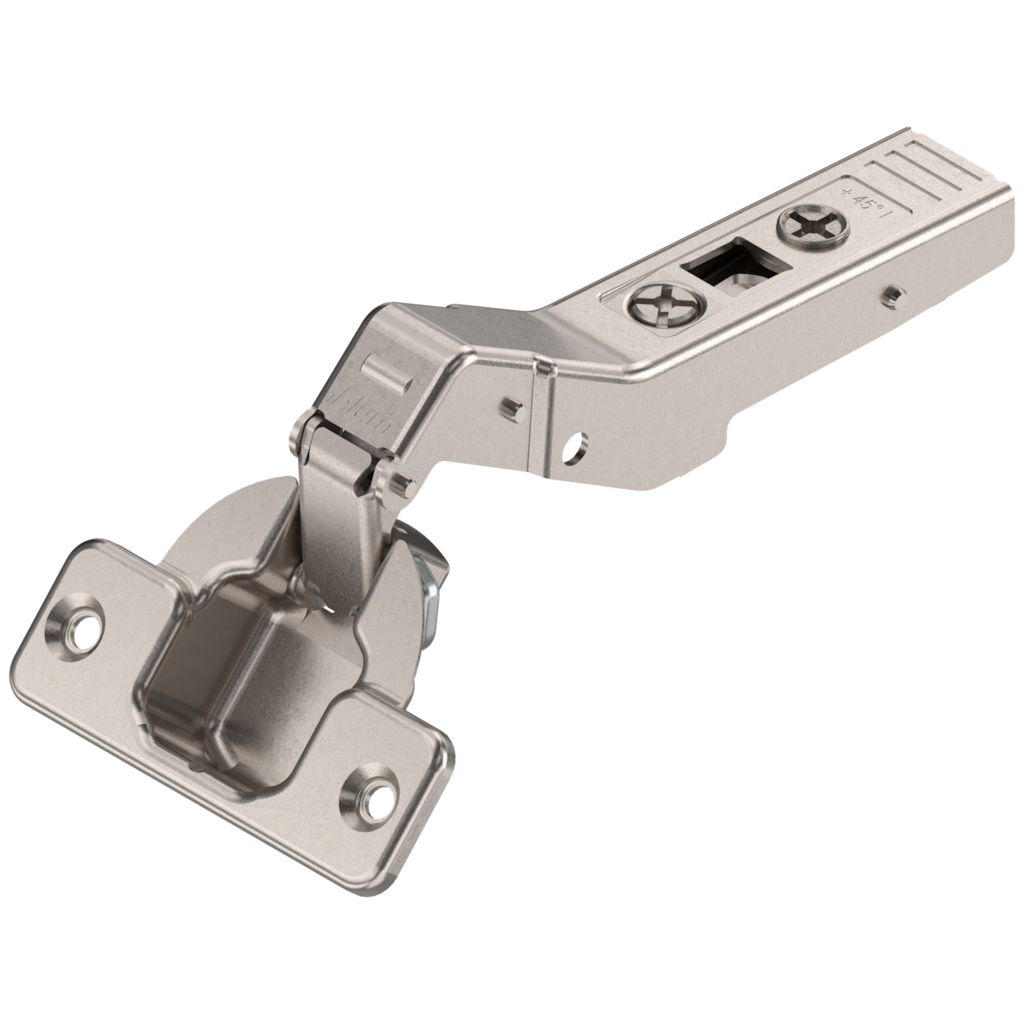

The angled hinge is suitable for cabinets with opening angles from -50° to +50°. In combination with the tried-and-tested CLIP mechanism, it is very easy to assemble and adjust, permitting precise adjustment of the door.
description
Technical data
expand_more
Technical data
type
angled hinge
application
half overlay
colour/surface
nickel plated
boss fixing
for screwing on
cabinet angle
45 °
closing mechanism
with spring
integrated soft-close mechanism
no
for door material
wood
front type
wooden and wide alu frame door
fixed dimension in factory setting
-6.01 mm
closed hinge
no
hinge system
CLIP top
material
steel
mounting system
CLIP
opening angle
95 °
pivoting system
SYS-02 / Profile/thick door
scope of delivery
1x angled hinge
depth adjustment type
convenient with spiral screw
type of boss cover cap
70T1504
type of hinge arm cover cap
90M2603
/
70.1553
