CLIP top angled hinge cabinet angle 45°

chevron_left Back

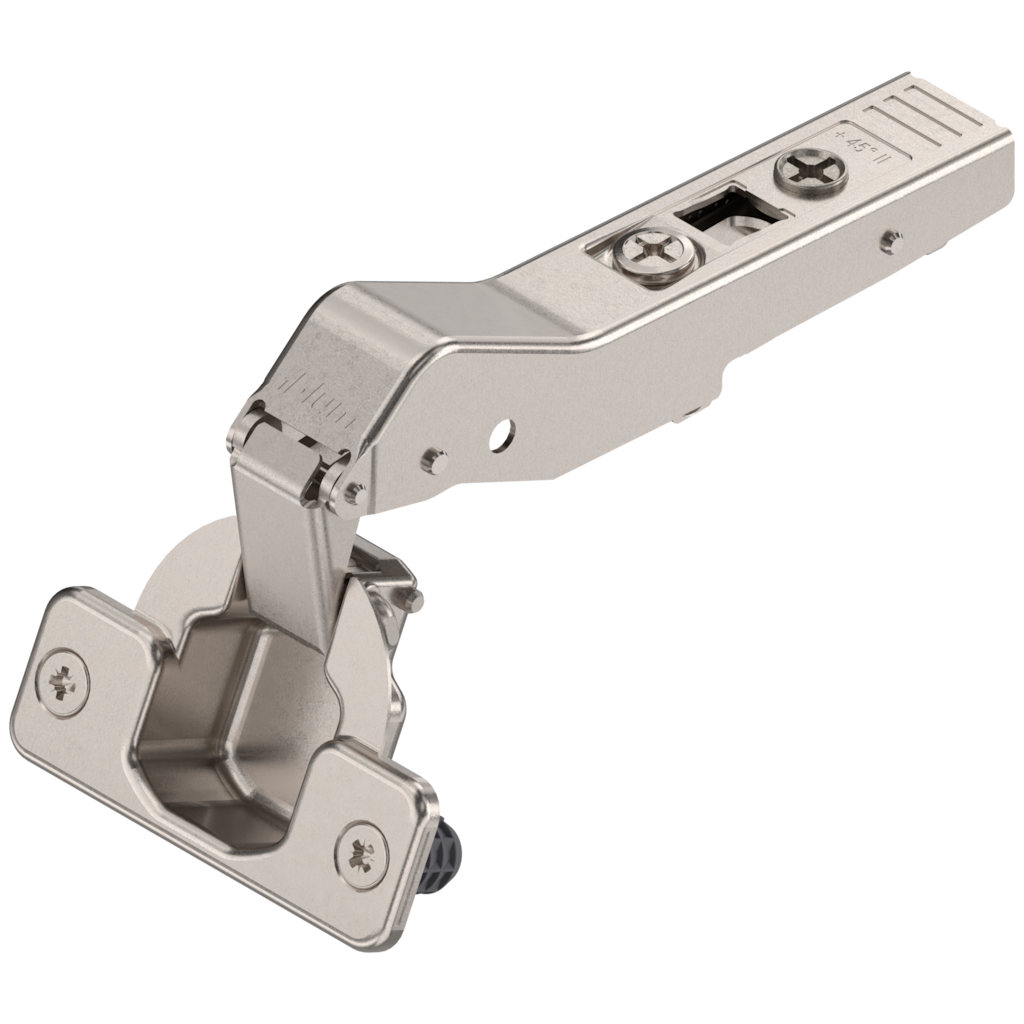

CLIP top angled hinge cabinet angle 45°
CLIP top angled hinge cabinet angle 45°
Ident no: 04798973
Part no.: 79T5580 MB45+ V50 NI
Box qty: 50 pcs
  • type: angled hinge
  • boss fixing: knock-in
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay
  • opening angle: 110 °
CLIP top angled hinge 45° II, overlay, boss: knock-in, Nickel plated
Ident no: 04798973 Part no.: 79T5580 MB45+ V50 NI Box qty: 50 pcs
  • type: angled hinge
  • boss fixing: knock-in
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay
  • opening angle: 110 °
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Winkelscharnier eignet sich für Korpusse mit Öffnungswinkeln von -50° bis +50°. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke.
description Technical data expand_more

Technical data

type
angled hinge
boss fixing
knock-in
cabinet angle
45 °
closing mechanism
with spring
colour/surface
nickel plated
