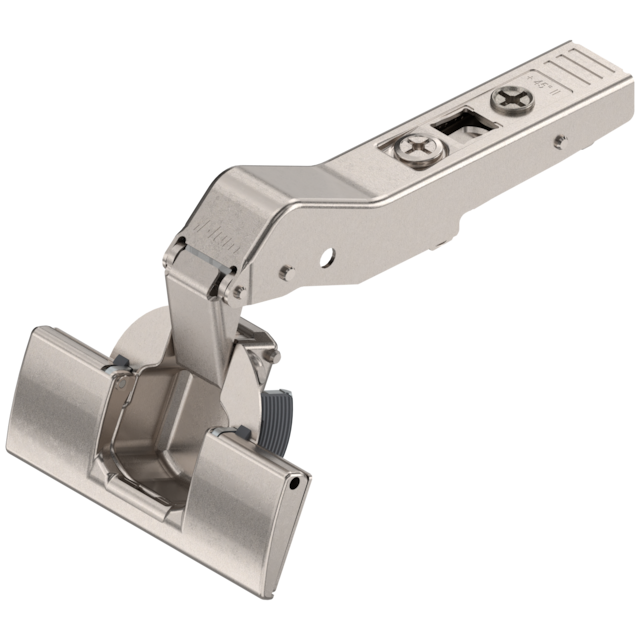

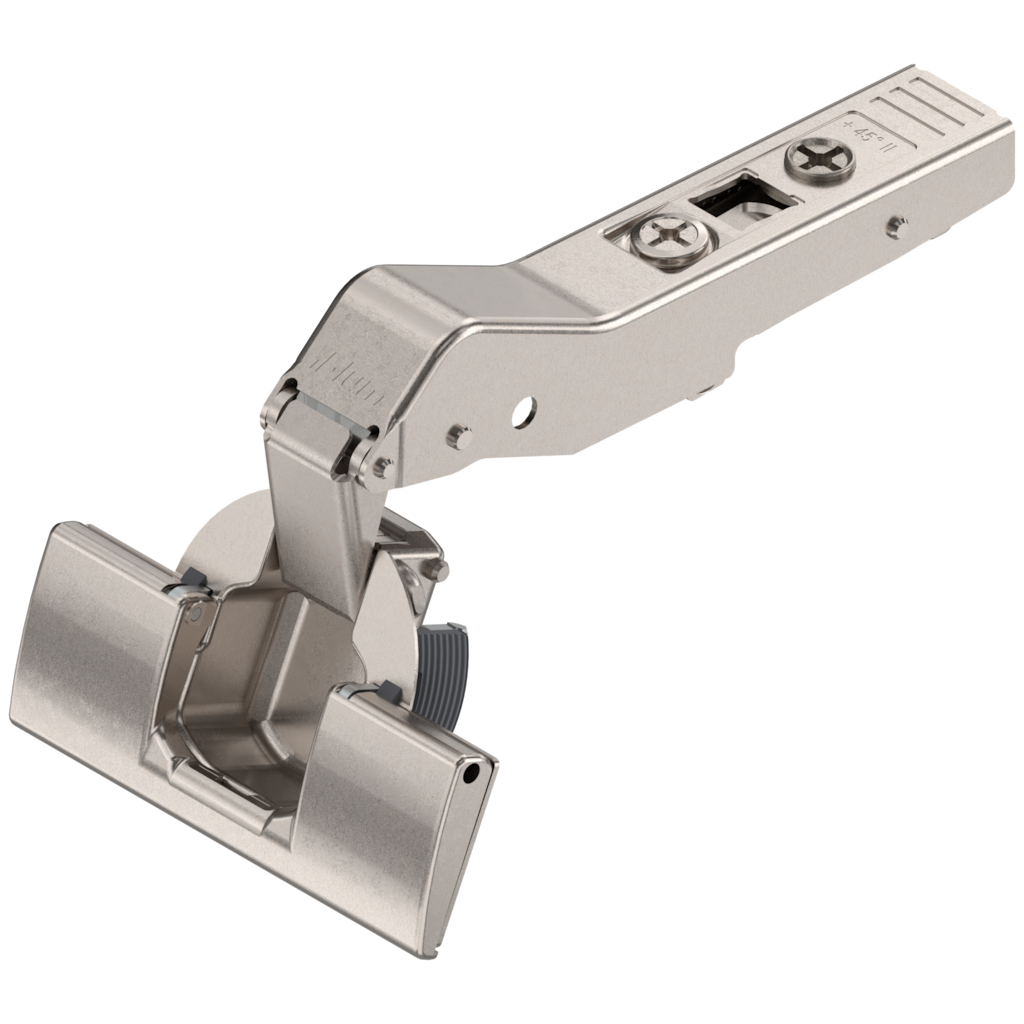

CLIP top Angled hinge Cabinet angle 45°

CLIP top angled hinge 45° II, overlay, boss: tool-free with INSERTA, Nickel plated

Ident no: 06874653 Part no.: 79T5590B MB45+ V50 NI Box qty: 50 pcs
  • boss fixing: tool-free with INSERTA
  • closing mechanism: With spring
  • colour/surface: Nickel plated
  • application: Overlay
  • opening angle: 110 °
  • type: Angled hinge
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Winkelscharnier ist für Korpusse mit Winkeln von -50° bis +50°. CLIP top steht für hohen Einstell- und Montagekomfort, durch den bewährten CLIP Mechanismus sowie einer komfortablen und präzisen dreidimensionalen Türjustierung mit Tiefeneinstellung über die Gewindeschnecke. Der Öffnungswinkel beträgt 110°.
description Technical data expand_more

Technical data

boss fixing
tool-free with INSERTA
cabinet angle
45 °
closing mechanism
With spring
colour/surface
Nickel plated
integrated soft-close mechanism
No
