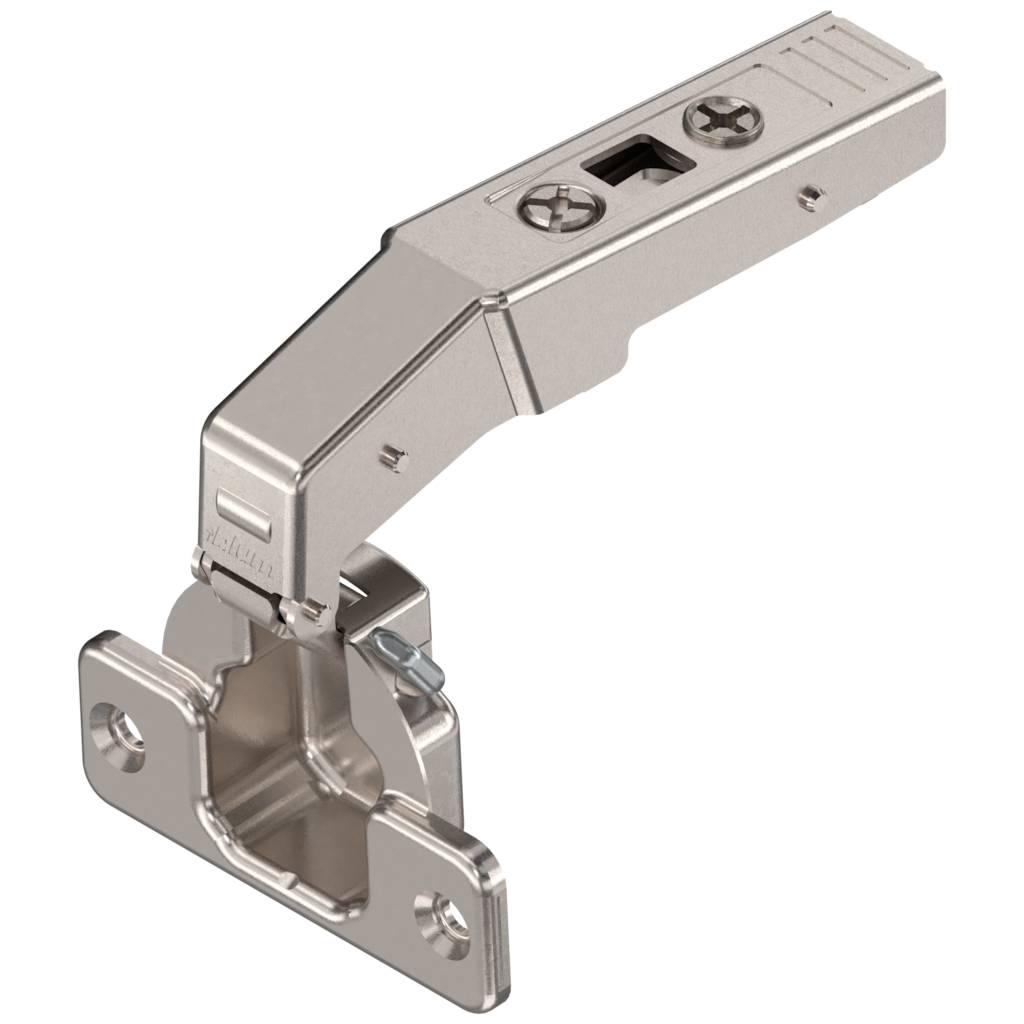

The blind corner hinge is suitable for blind corner applications. In combination with the tried-and-tested CLIP mechanism, it is very easy to assemble and adjust, permitting precise adjustment of the door.
description
Technical data
expand_more
Technical data
type
blind corner hinge
boss fixing
for screwing on
closing mechanism
unsprung
colour/surface
nickel plated
integrated soft-close mechanism
no
for door material
wood
front type
wooden and wide alu frame door
fixed dimension in factory setting
-8.00 mm
closed hinge
no
hinge system
CLIP top
material
steel
motion technology
suitable for TIP-ON
mounting system
CLIP
opening angle
95 °
pivoting system
SYS-02 / Profile/thick door
scope of delivery
1x blind corner hinge
depth adjustment type
convenient with spiral screw
type of boss cover cap
70T1504
type of hinge arm cover cap
90M2503
/
70.1503
