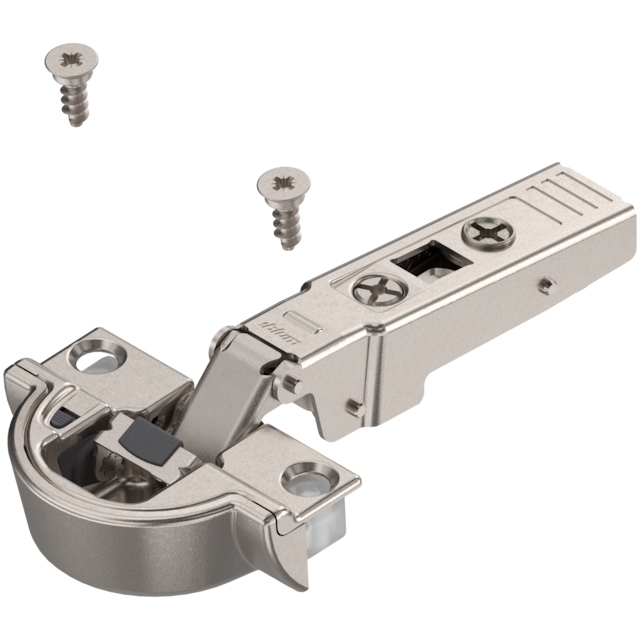

The aluminium frame door hinge with soft-close BLUMOTION integrated in the boss is specifically designed for doors with narrow aluminium frames. It impresses with innovative technology, an internationally award-winning design and top quality motion within the smallest space.
description
Technical data
expand_more
Technical data
type
aluminium frame door hinge
application
overlay application
colour/surface
nickel plated
boss fixing
for screwing on
closing mechanism
with spring
integrated soft-close mechanism
yes
for door material
aluminium
front type
aluminium frame door narrow frame
fixed dimension in factory setting
11.00 mm
closed hinge
no
hinge system
CLIP top BLUMOTION
material
steel
motion technology
integrated BLUMOTION
mounting system
CLIP
opening angle
95 °
pivoting system
SYS-02 / Profile/thick door
scope of delivery
1x aluminium frame door hinge, 2x screw for fixing in nylon
depth adjustment type
convenient with spiral screw
suitable for lift system type
HK-XS
type of hinge arm cover cap
90M2503
/
70.1553
