CLIP top BLUMOTION aluminium frame door hinge 95°

chevron_left Back

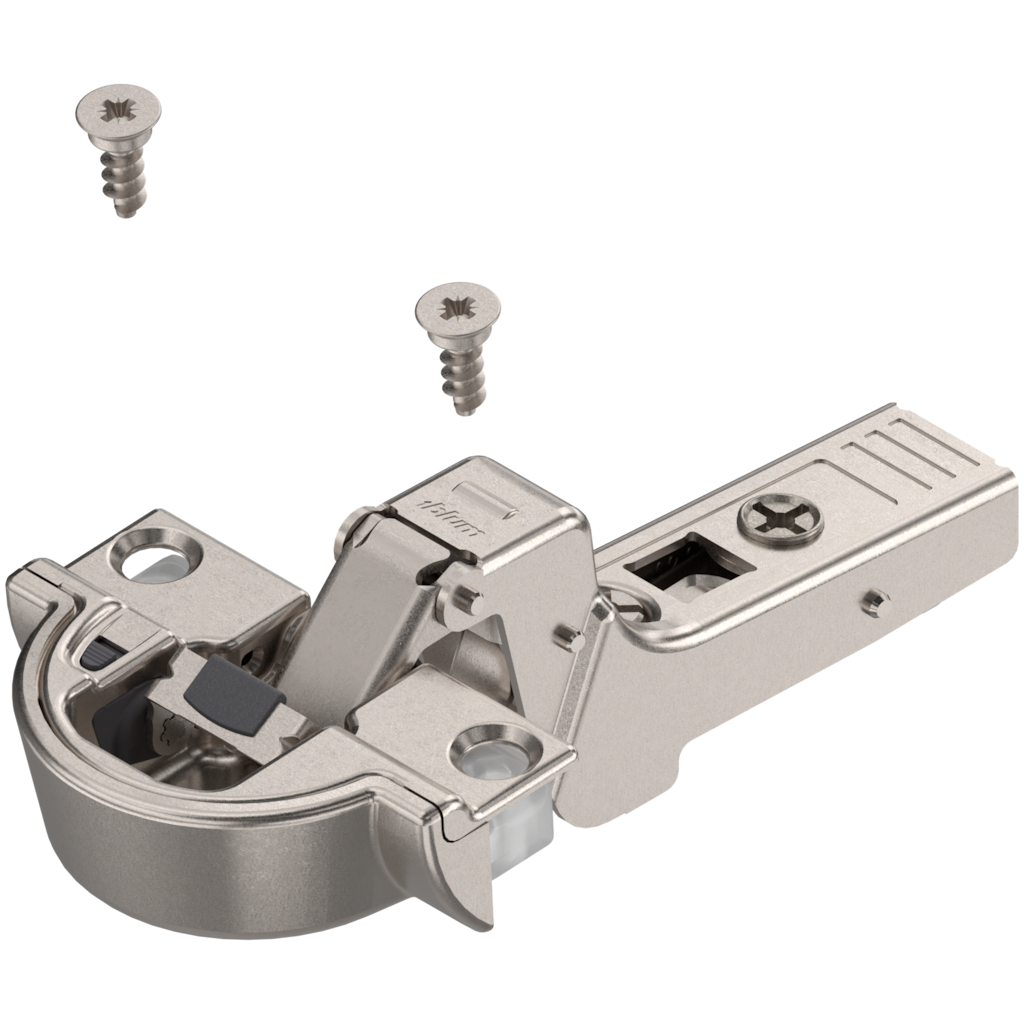

CLIP top BLUMOTION aluminium frame door hinge 95°
CLIP top BLUMOTION aluminium frame door hinge 95°
Ident no: 09351043
Part no.: 71B970A MB V50 NI
Box qty: 50 pcs
  • type: aluminium frame door hinge
  • boss fixing: for screwing on
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: inset application
  • opening angle: 95 °
CLIP top BLUMOTION alu frame door hinge 95°, inset application, boss: screw-on, Nickel plated
Ident no: 09351043 Part no.: 71B970A MB V50 NI Box qty: 50 pcs
  • type: aluminium frame door hinge
  • boss fixing: for screwing on
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: inset application
  • opening angle: 95 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Alurahmenscharnier mit dem im Scharniertopf integrierten Dämpfungssystem BLUMOTION ist speziell für Türen mit schmalem Alurahmen konzipiert. Es überzeugt durch innovative Technik, international ausgezeichnetes Design und hohen Bewegungskomfort auf kleinstem Raum.
description Technical data expand_more

Technical data

type
aluminium frame door hinge
boss fixing
for screwing on
closing mechanism
with spring
colour/surface
nickel plated
integrated soft-close mechanism
yes
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

person Log in Register now
handyman Assembly instructions expand_more
