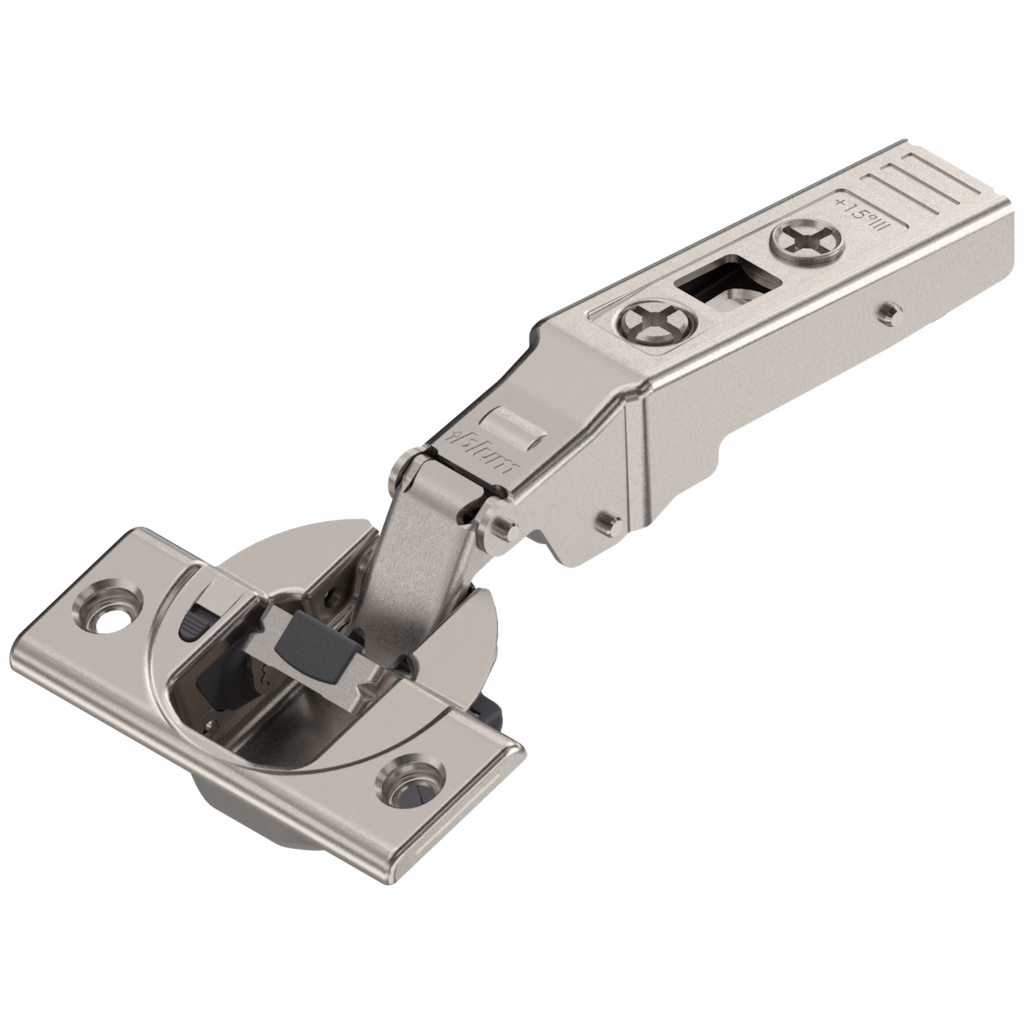

Das Winkelscharnier mit dem im Scharniertopf integrierten Dämpfungssystem BLUMOTION eignet sich für Korpusse mit Öffnungswinkeln von -50° bis +50°. Es überzeugt durch innovative Technik, international ausgezeichnetes Design und hohen Bewegungskomfort auf kleinstem Raum.
description
Technical data
expand_more
Technical data
type
angled hinge
boss fixing
for screwing on
cabinet angle
15 °
closing mechanism
with spring
colour/surface
nickel plated
integrated soft-close mechanism
yes
mounting plate spacing
6 mm
for door material
wood
front type
wooden and wide alu frame door
fixed dimension in factory setting
17.21 mm
application
maximum overlay
closed hinge
no
hinge system
CLIP top BLUMOTION
material
steel
motion technology
integrated BLUMOTION
mounting system
CLIP
opening angle
95 °
pivoting system
profile/thick door
scope of delivery
1x angled hinge
depth adjustment type
convenient with spiral screw
