CLIP top BLUMOTION angled hinge cabinet angle 30°

chevron_left Back

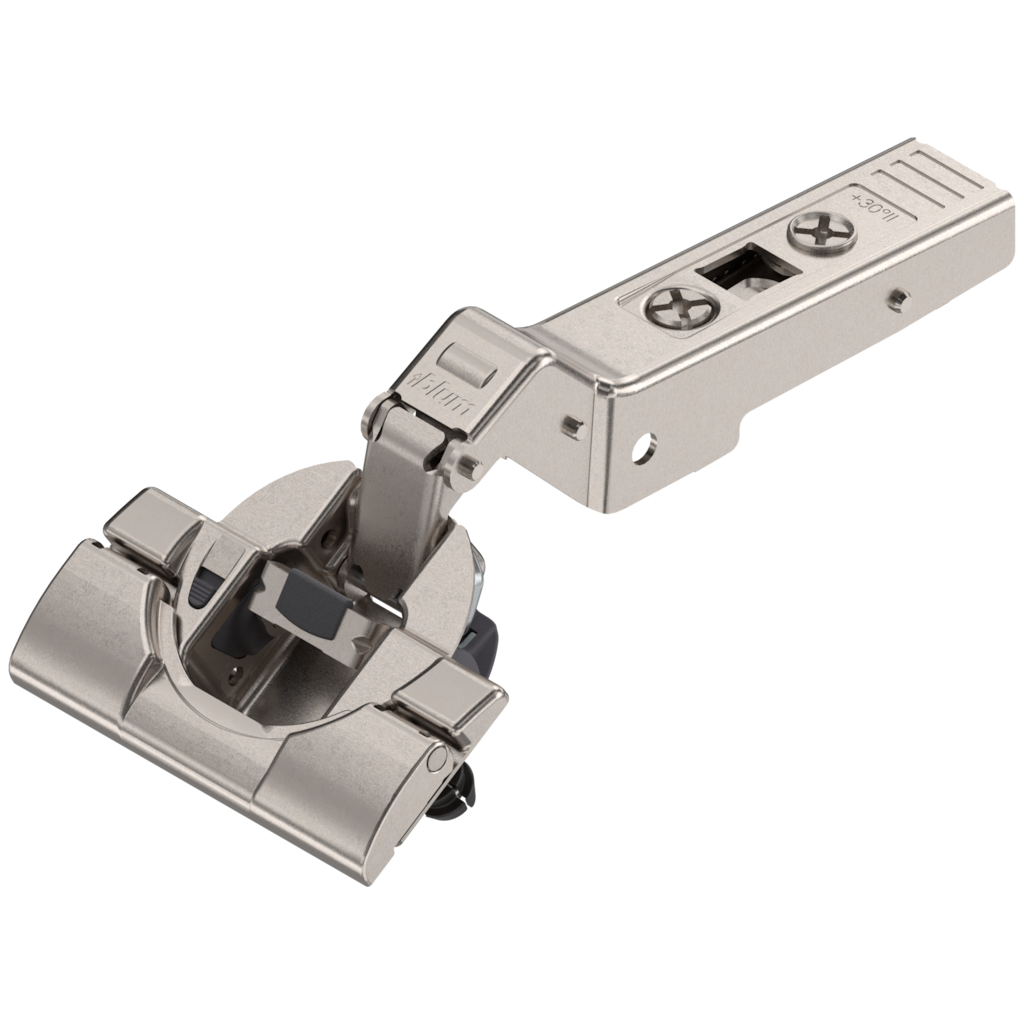

CLIP top BLUMOTION angled hinge cabinet angle 30°
CLIP top BLUMOTION angled hinge cabinet angle 30°
Ident no: 09348553
Part no.: 79B9596 MB30+ V50 NI
Box qty: 50 pcs
  • type: angled hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay
  • opening angle: 95 °
CLIP top BLUMOTION angled hinge 30° II, overlay, boss: tool-free with INSERTA, Nickel plated
Ident no: 09348553 Part no.: 79B9596 MB30+ V50 NI Box qty: 50 pcs
  • type: angled hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay
  • opening angle: 95 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

The angled hinge with soft-close BLUMOTION integrated in the boss is suitable for cabinets with opening angles from -50° to +50°. It impresses with innovative technology, an internationally award-winning design and top quality motion within the smallest space.
description Technical data expand_more

Technical data

type
angled hinge
boss fixing
tool-free with INSERTA
cabinet angle
30 °
closing mechanism
with spring
colour/surface
nickel plated
