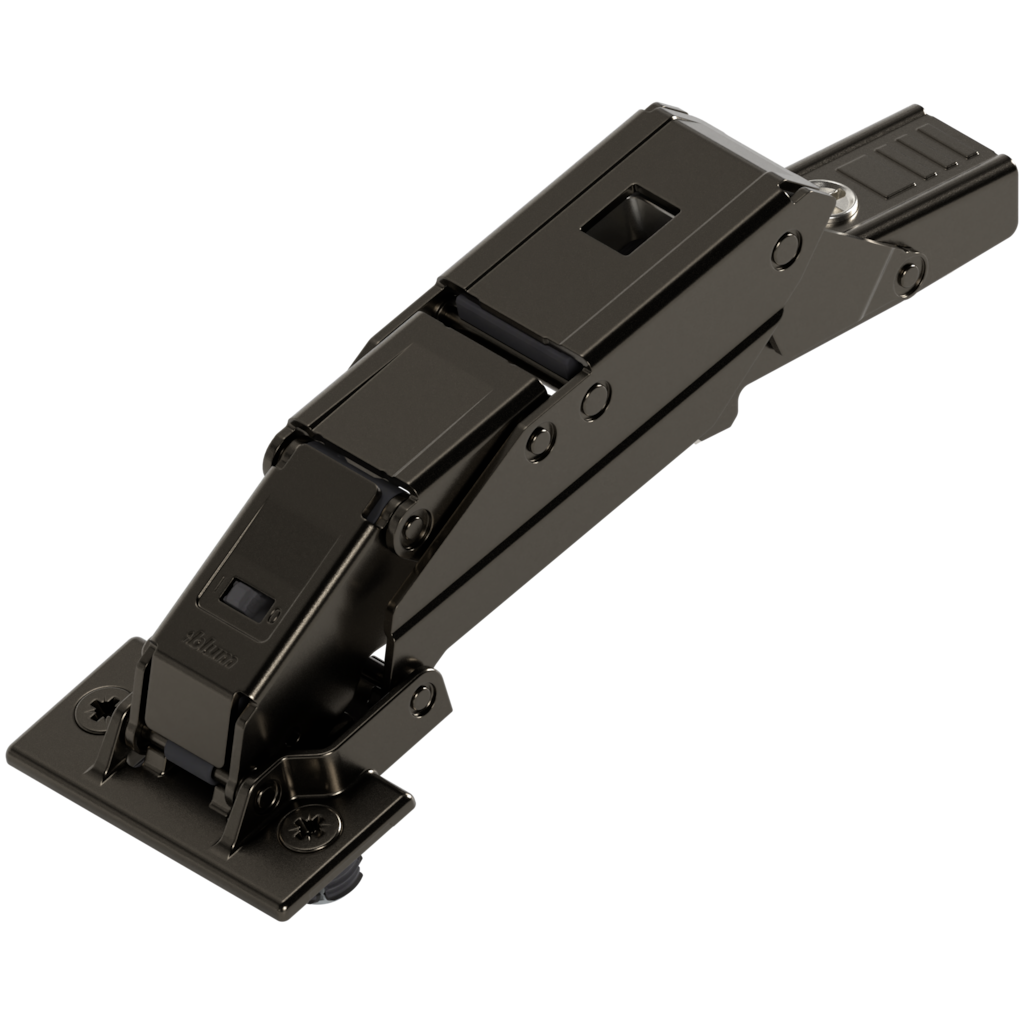

CLIP top BLUMOTION hinge for thin doors 110°

CLIP top BLUMOTION Hinge for thin doors 110°, overlay application, boss: EXPANDO T, Onyx black

Ident no: 05740545 Part no.: 71B453T MB V25 ONS Box qty: 25 pcs
  • type: hinge for thin doors
  • application: overlay, half overlay and inset application
  • colour/surface: onyx black
  • boss fixing: with EXPANDO T
  • closing mechanism: with spring
  • hinge system: CLIP top BLUMOTION
  • opening angle: 110 °
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

  • check_circle_outline The onyx black option blends elegantly into dark furniture and also creates striking contrasts on light-coloured surfaces
  • check_circle_outline The standard fixing position is sufficient for fixing the mounting plate in the cabinet, making it possible to use standard cabinets and facilitating the production process
  • check_circle_outline Firm anchorage in hard and soft materials alike thanks to steel teeth and nylon components
  • check_circle_outline With integrated spring to help the door to close and keep it closed
  • check_circle_outline Soft and effortless closing thanks to the integrated BLUMOTION soft-close mechanism, regardless of the weight of the front and closing speed
  • check_circle_outline BLUMOTION can be deactivated with a sliding switch on the hinge boss, e.g. for small or lightweight doors
  • check_circle_outline Compatible with all CLIP mounting plates
  • check_circle_outline Convenient depth adjustment with spiral screw
  • check_circle_outline Easy assembly and adjustment: drill, insert, tighten, done!
  • check_circle_outline Practical CLIP assembly method
  • check_circle_outline 3-dimensional front adjustment (with mounting plate) for convenient adjustment and a uniform gap layout
  • check_circle_outline Usable in furniture with thin fronts measuring 8 mm or more (drilling depth of 6 mm suffices)
The hinge for thin doors with fronts from 8 mm uses the EXPANDO T fixing system with steel teeth for hard materials and nylon components for soft materials. In combination with the tried-and-tested CLIP mechanism, it offers a high degree of adjustment and assembly ease, as well as easy and precise three-dimensional door adjustment with depth adjustment by means of a spiral screw. The integrated soft-close BLUMOTION in the hinge boss embodies innovative technology, internationally award-winning design and top quality motion within the smallest space.
description Technical data expand_more

Technical data

type
hinge for thin doors
application
overlay, half overlay and inset application
colour/surface
onyx black
boss fixing
with EXPANDO T
closing mechanism
with spring
