CLIP top BLUMOTION wide angle hinge 155°

chevron_left Back

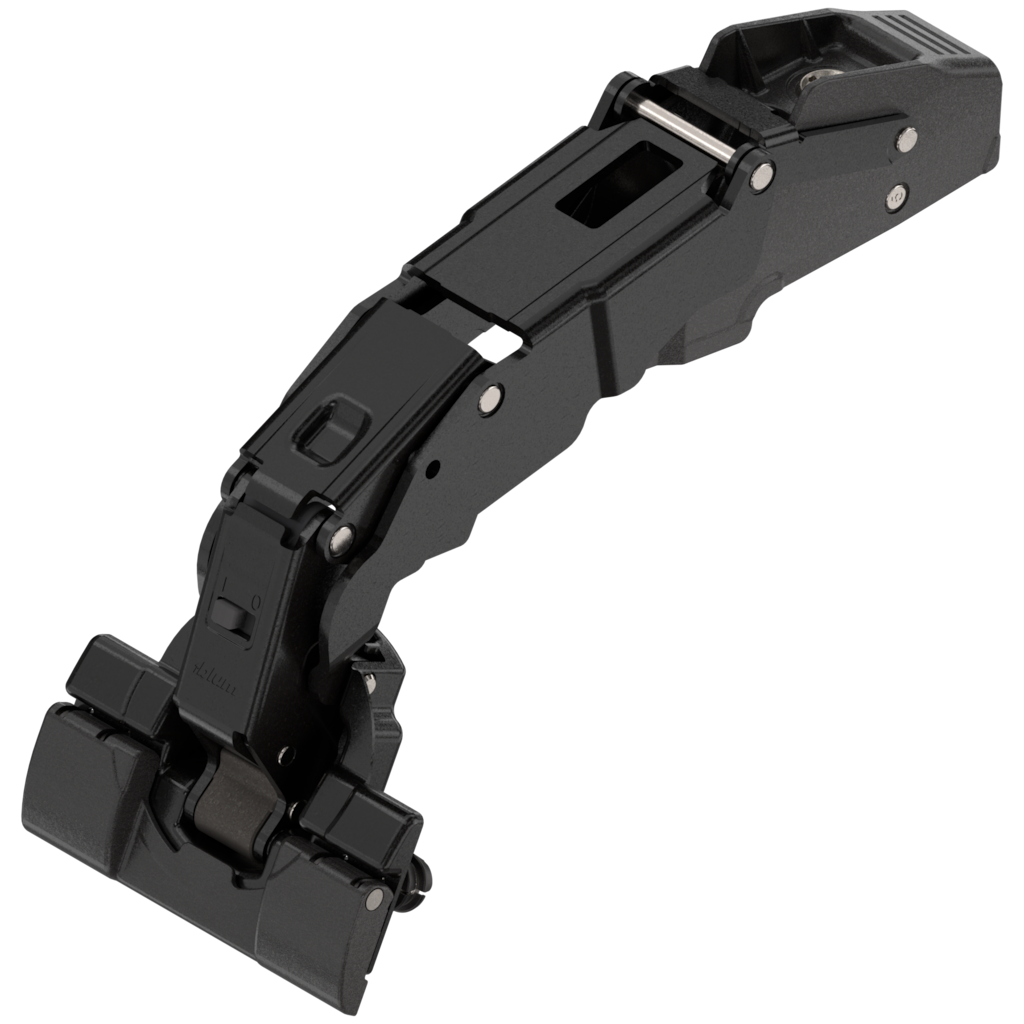

CLIP top BLUMOTION wide angle hinge 155°
CLIP top BLUMOTION wide angle hinge 155°
Ident no: 03309949
Part no.: 71B7690 MB V25 ONS
Box qty: 25 pcs
  • type: wide angle hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: with spring
  • colour/surface: onyx black
  • application: half overlay application
  • opening angle: 155 °
CLIP top BLUMOTION wide angle hinge 155°, dual application, boss: tool-free with INSERTA, Onyx black
Ident no: 03309949 Part no.: 71B7690 MB V25 ONS Box qty: 25 pcs
  • type: wide angle hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: with spring
  • colour/surface: onyx black
  • application: half overlay application
  • opening angle: 155 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

The wide angle hinge with soft-close BLUMOTION integrated in the boss enables cabinet doors to have wide opening angles and is suitable for special applications. Thanks to zero protrusion, the hinge is suitable both for standard applications and for cabinets with inner pull-outs or pull-out shelves. It impresses with innovative technology, an internationally award-winning design and top quality motion within the smallest space.
description Technical data expand_more

Technical data

type
wide angle hinge
boss fixing
tool-free with INSERTA
closing mechanism
with spring
colour/surface
onyx black
integrated soft-close mechanism
yes
