CLIP top centre hinge 134°

chevron_left Back

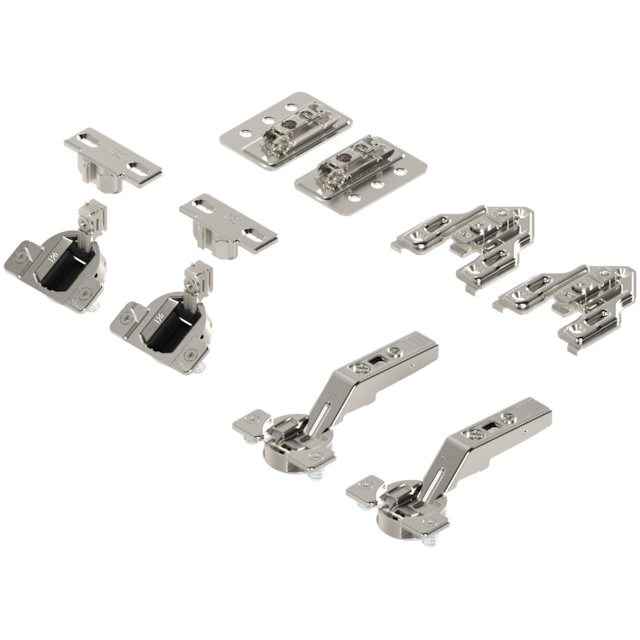

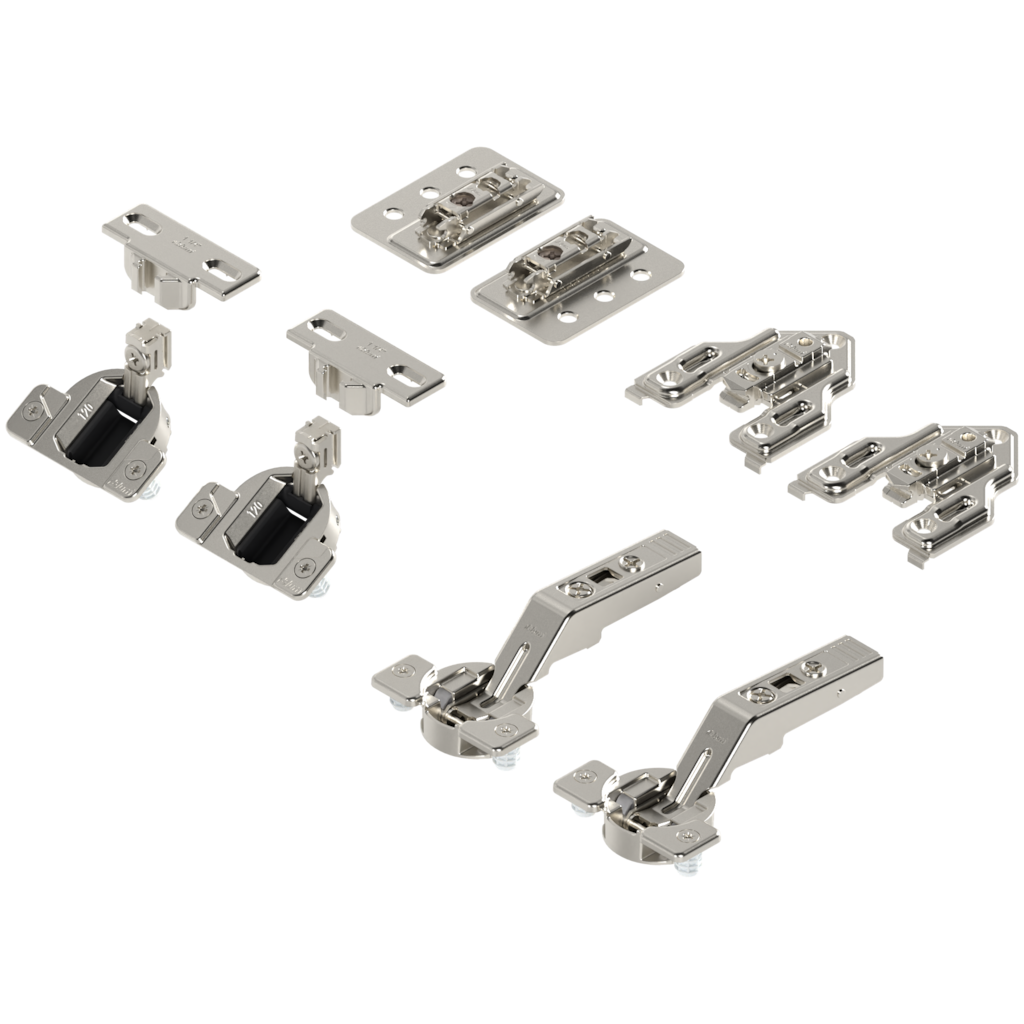

CLIP top centre hinge 134°
CLIP top centre hinge for AVENTOS bi-fold lift systems 134° (Set), unsprung, boss: knock-in, Nickel plated
Ident no: 26311483
Part no.: 78Z5530TA9MB+P S2 NI
Box qty: 1 pc
  • boss fixing: knock-in
  • closing mechanism: unsprung
  • colour/surface: nickel plated

CLIP top centre hinge for AVENTOS bi-fold lift systems 134° (Set), unsprung, boss: knock-in, Nickel plated

Ident no: 26311483 Part no.: 78Z5530TA9MB+P S2 NI Box qty: 1 pc
  • boss fixing: knock-in
  • closing mechanism: unsprung
  • colour/surface: nickel plated
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Zwischenscharnier für die AVENTOS-Hochfaltklappe ist ein Spezialscharnier mit integrierter Fingersicherheit. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke.
description Technical data expand_more

Technical data

type
centre hinge
boss fixing
knock-in
closing mechanism
unsprung
colour/surface
nickel plated
integrated soft-close mechanism
no
