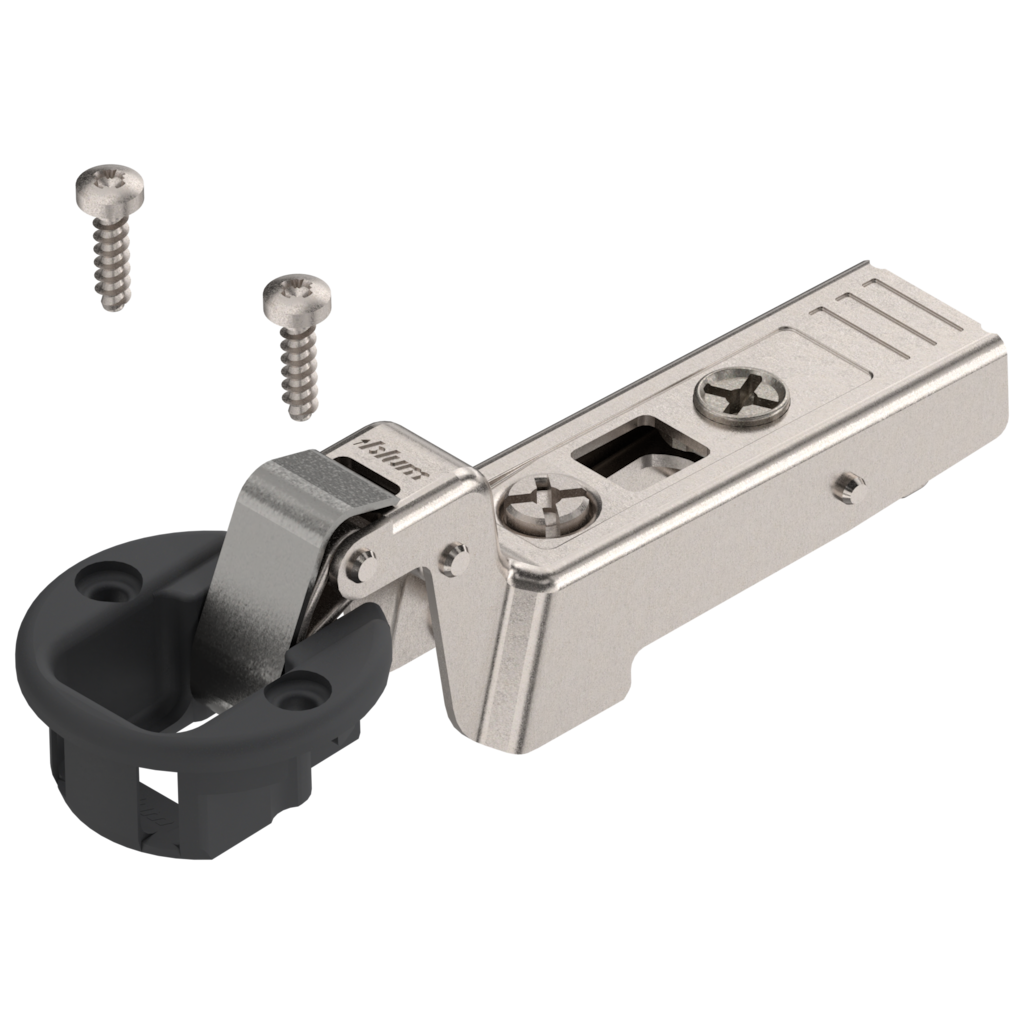

CLIP top glass door hinge 94°

CLIP top glass door hinge 94°

  • type: glass door hinge
  • application: inset application
  • colour/surface: black/nickel plated
  • boss fixing: for screwing on
  • closing mechanism: with spring
  • hinge system: CLIP top
  • opening angle: 94 °
Ident no: 06458787 Part no.: 75T4300 GT-MB V50S/NI Box qty: 50 pcs
error_outline

Please log in to see prices and availability.

info Product information expand_more

Product information

  • check_circle_outline 3-dimensional front adjustment (with mounting plate) for convenient adjustment and a uniform gap layout
  • check_circle_outline Compatible with all CLIP mounting plates
  • check_circle_outline Convenient depth adjustment with spiral screw
  • check_circle_outline With integrated spring to help the door to close and keep it closed
  • check_circle_outline Practical CLIP assembly method
The glass door hinge is an elegant and stable solution for mounting glass doors with boss drilling. It is suitable for front thicknesses from 4.5 to 7 mm. In combination with the tried-and-tested CLIP mechanism, it offers a high degree of adjustment and assembly ease, as well as easy and precise three-dimensional door adjustment with depth adjustment by means of a spiral screw.
description Technical data expand_more

Technical data

type
glass door hinge
application
inset application
colour/surface
black/nickel plated
boss fixing
for screwing on
closing mechanism
with spring
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.
