CLIP top mini-hinge 94°

chevron_left Back

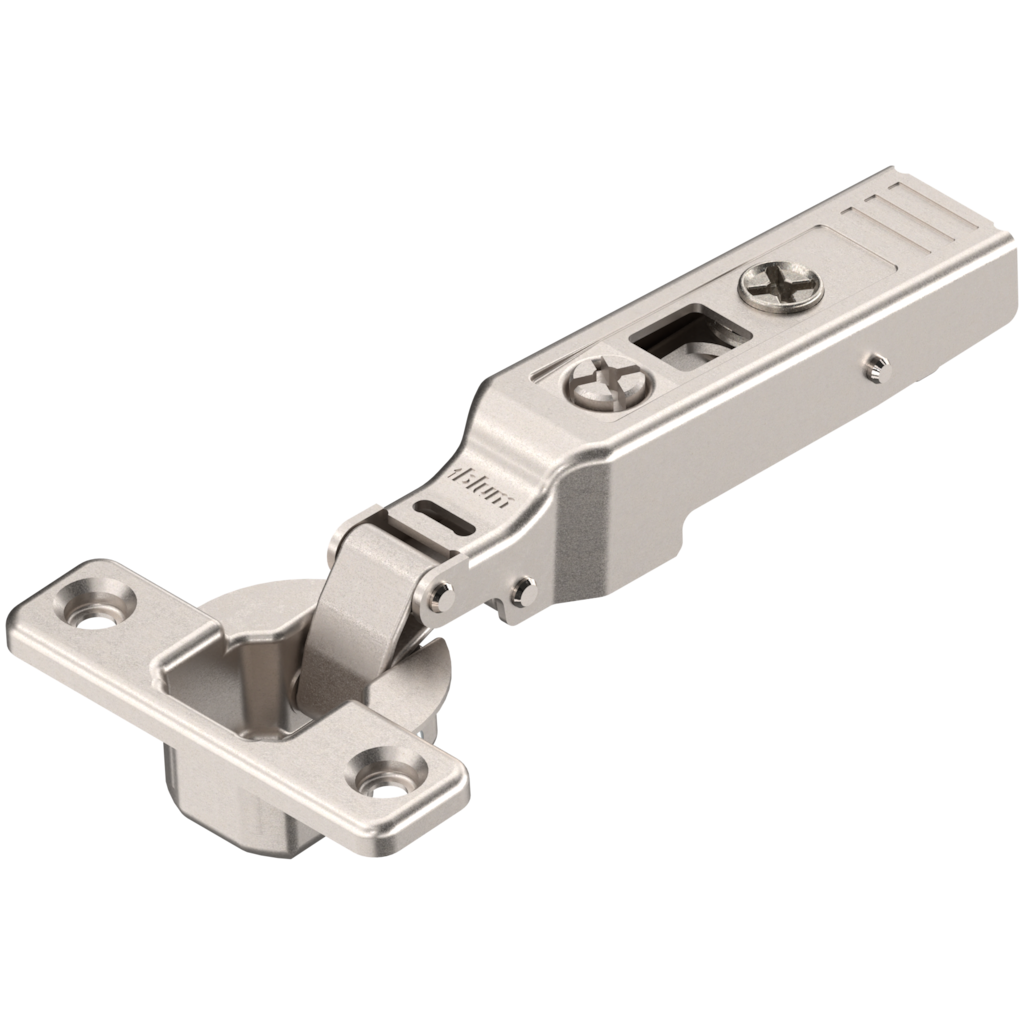

CLIP top mini-hinge 94°
CLIP top mini hinge 94°, overlay application, unsprung, boss: screw-on, Nickel plated
Ident no: 09246343
Part no.: 70T0550 MB V50 NI
Box qty: 50 pcs
  • type: mini-hinge
  • boss fixing: for screwing on
  • closing mechanism: unsprung
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 94 °

CLIP top mini hinge 94°, overlay application, unsprung, boss: screw-on, Nickel plated

Ident no: 09246343 Part no.: 70T0550 MB V50 NI Box qty: 50 pcs
  • type: mini-hinge
  • boss fixing: for screwing on
  • closing mechanism: unsprung
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 94 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Aufgrund seines geringeren Topfdurchmessers ist das Minischarnier für Fronten mit schmalen Rahmen ideal geeignet. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke.
description Technical data expand_more

Technical data

type
mini-hinge
boss fixing
for screwing on
closing mechanism
unsprung
colour/surface
nickel plated
integrated soft-close mechanism
no
