CLIP top standard hinge 107°

chevron_left Back
CLIP top standard hinge 107°

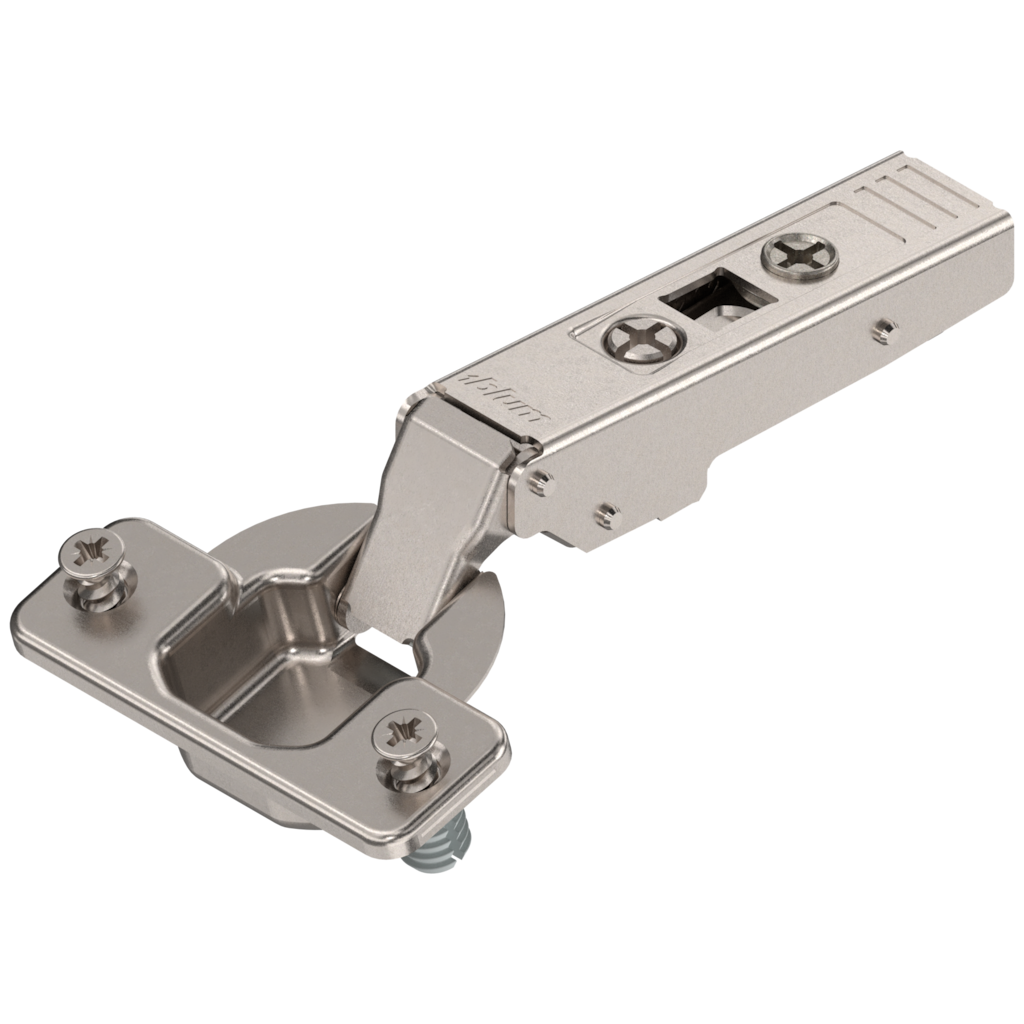

CLIP top standard hinge 107°, overlay application, boss: EXPANDO, Nickel plated
Ident no: 03439503
Part no.: 75T158E MB V250 NI
Box qty: 250 pcs
  • type: standard hinge
  • boss fixing: with EXPANDO split dowels
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 107 °

CLIP top standard hinge 107°, overlay application, boss: EXPANDO, Nickel plated

Ident no: 03439503 Part no.: 75T158E MB V250 NI Box qty: 250 pcs
  • type: standard hinge
  • boss fixing: with EXPANDO split dowels
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 107 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Scharnier ist für Standardanwendungen mit Frontstärken bis ca. 24 mm geeignet. Durch die geringe Topfbohrtiefe von nur 11.5 mm eignet sich das Scharnier schon für Frontdicken ab 15 mm. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke. Der Öffnungswinkel beträgt 107°.
description Technical data expand_more

Technical data

type
standard hinge
boss fixing
with EXPANDO split dowels
closing mechanism
with spring
colour/surface
nickel plated
integrated soft-close mechanism
no
