CLIP top standard hinge 110°

chevron_left Back

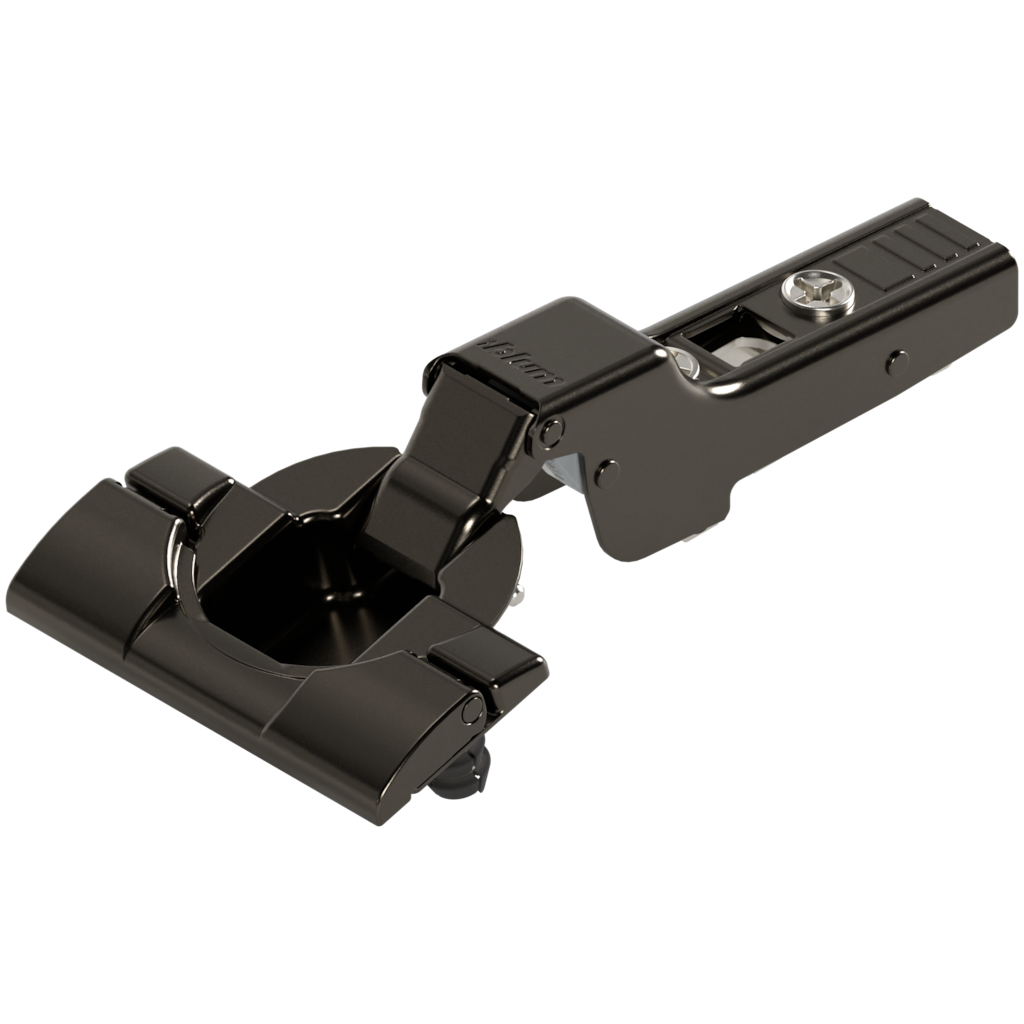

CLIP top standard hinge 110°
CLIP top standard hinge 110°, dual application, unsprung, boss: tool-free with INSERTA, Onyx black
Ident no: 05479156
Part no.: 70T3690.TLMB V50 ONS
Box qty: 50 pcs
  • type: standard hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: unsprung
  • colour/surface: onyx black
  • application: half overlay application
  • opening angle: 110 °

CLIP top standard hinge 110°, dual application, unsprung, boss: tool-free with INSERTA, Onyx black

Ident no: 05479156 Part no.: 70T3690.TLMB V50 ONS Box qty: 50 pcs
  • type: standard hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: unsprung
  • colour/surface: onyx black
  • application: half overlay application
  • opening angle: 110 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Scharnier ist für Standardanwendungen mit Frontstärken bis ca. 24 mm geeignet. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke.
description Technical data expand_more

Technical data

type
standard hinge
boss fixing
tool-free with INSERTA
closing mechanism
unsprung
colour/surface
onyx black
integrated soft-close mechanism
no
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

person Log in Register now
handyman Assembly instructions expand_more
