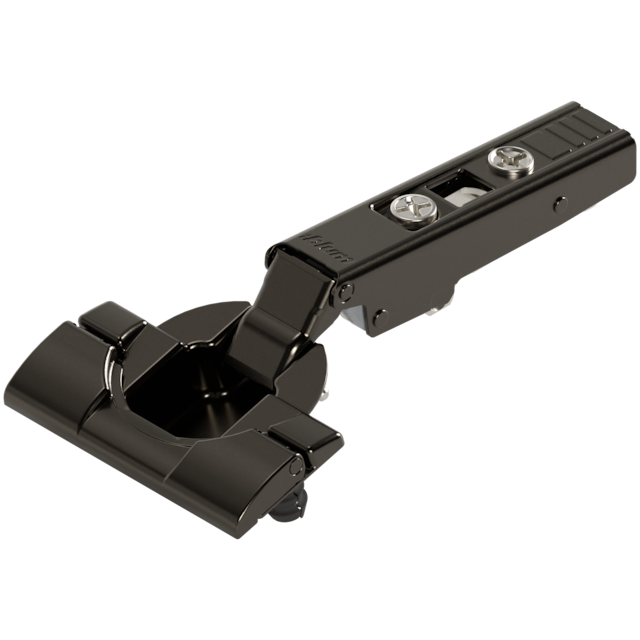

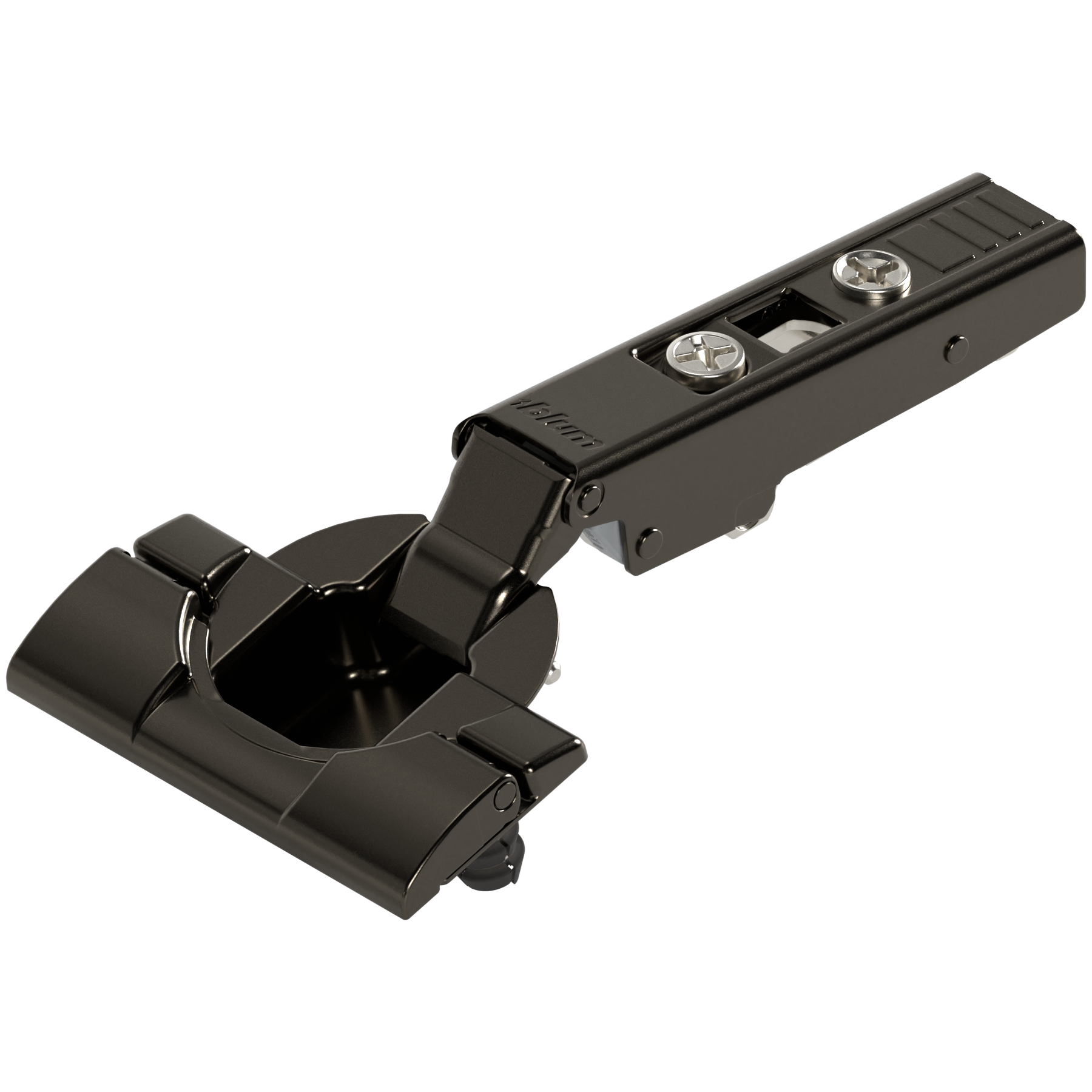

The hinge is suitable for standard applications with front thicknesses of up to around 24 mm. In combination with the tried-and-tested CLIP mechanism, it is very easy to assemble and adjust, permitting precise adjustment of the door.
description
Technical data
expand_more
Technical data
type
standard hinge
boss fixing
tool-free with INSERTA
closing mechanism
unsprung
colour/surface
onyx black
integrated soft-close mechanism
no
for door material
wood
front type
wooden and wide alu frame door
fixed dimension in factory setting
11.00 mm
application
overlay application
closed hinge
no
hinge system
CLIP top
lift system
CLIP top
material
steel
motion technology
suitable for TIP-ON
mounting system
CLIP
opening angle
110 °
pivoting system
SYS-14 / 110°
scope of delivery
1x standard hinge
depth adjustment type
convenient with spiral screw
suitable for lift system type
HK-XS
type of hinge arm cover cap
70.1503
