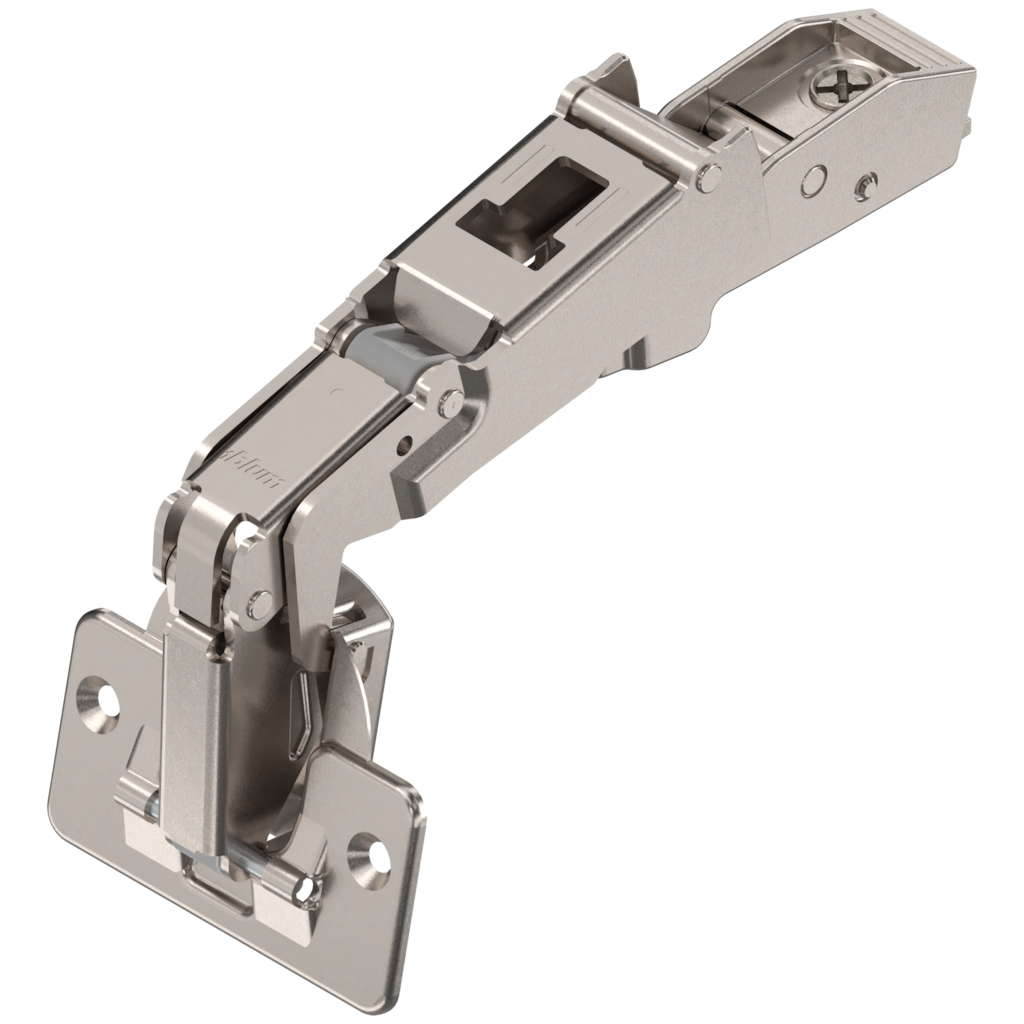

CLIP top wide angle hinge 170°

CLIP top wide angle hinge 170°
CLIP top wide angle hinge 170°
Ident no: 03733983
Part no.: 70T6550.TLMB V25 NI
Box qty: 25 pcs
  • type: wide angle hinge
  • application: overlay application
  • colour/surface: nickel plated
  • boss fixing: for screwing on
  • closing mechanism: unsprung
  • hinge system: CLIP top
  • opening angle: 170 °

CLIP top wide angle hinge 170°

  • type: wide angle hinge
  • application: overlay application
  • colour/surface: nickel plated
  • boss fixing: for screwing on
  • closing mechanism: unsprung
  • hinge system: CLIP top
  • opening angle: 170 °
Ident no: 03733983 Part no.: 70T6550.TLMB V25 NI Box qty: 25 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

  • check_circle_outline 3-dimensional front adjustment (with mounting plate) for convenient adjustment and a uniform gap layout
  • check_circle_outline Compatible with all CLIP mounting plates
  • check_circle_outline Convenient depth adjustment with spiral screw
  • check_circle_outline Practical CLIP assembly method
The wide angle hinge enables cabinet doors to have wide opening angles. In combination with the tried-and-tested CLIP mechanism, it is very easy to assemble and adjust, permitting precise adjustment of the door.
description Technical data expand_more

Technical data

type
wide angle hinge
application
overlay application
colour/surface
nickel plated
boss fixing
for screwing on
closing mechanism
unsprung
