CLIP top wide angle hinge 170°

chevron_left Back

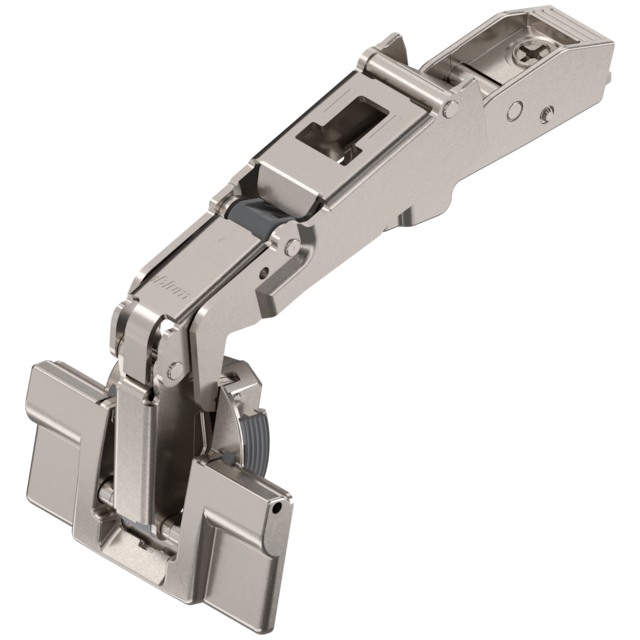

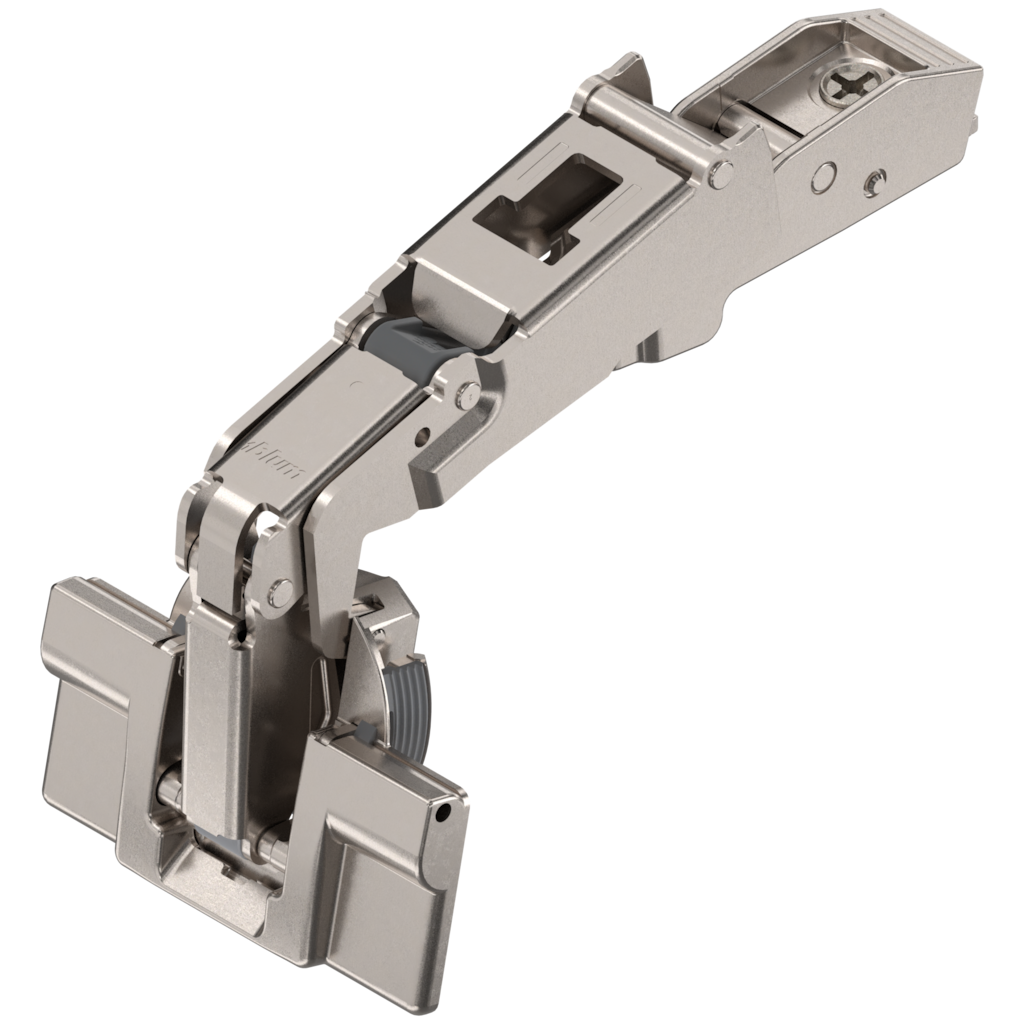

CLIP top wide angle hinge 170°
CLIP top wide angle hinge 170°
Ident no: 07108743
Part no.: 71T6540B MB V125 NI
Box qty: 125 pcs
  • type: wide angle hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 170 °
CLIP top wide angle hinge 170°, overlay application, boss: tool-free with INSERTA, Nickel plated
Ident no: 07108743 Part no.: 71T6540B MB V125 NI Box qty: 125 pcs
  • type: wide angle hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 170 °
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
description Technical data expand_more

Technical data

type
wide angle hinge
boss fixing
tool-free with INSERTA
closing mechanism
with spring
colour/surface
nickel plated
integrated soft-close mechanism
no
