CLIP top wide angle hinge 170°

chevron_left Back

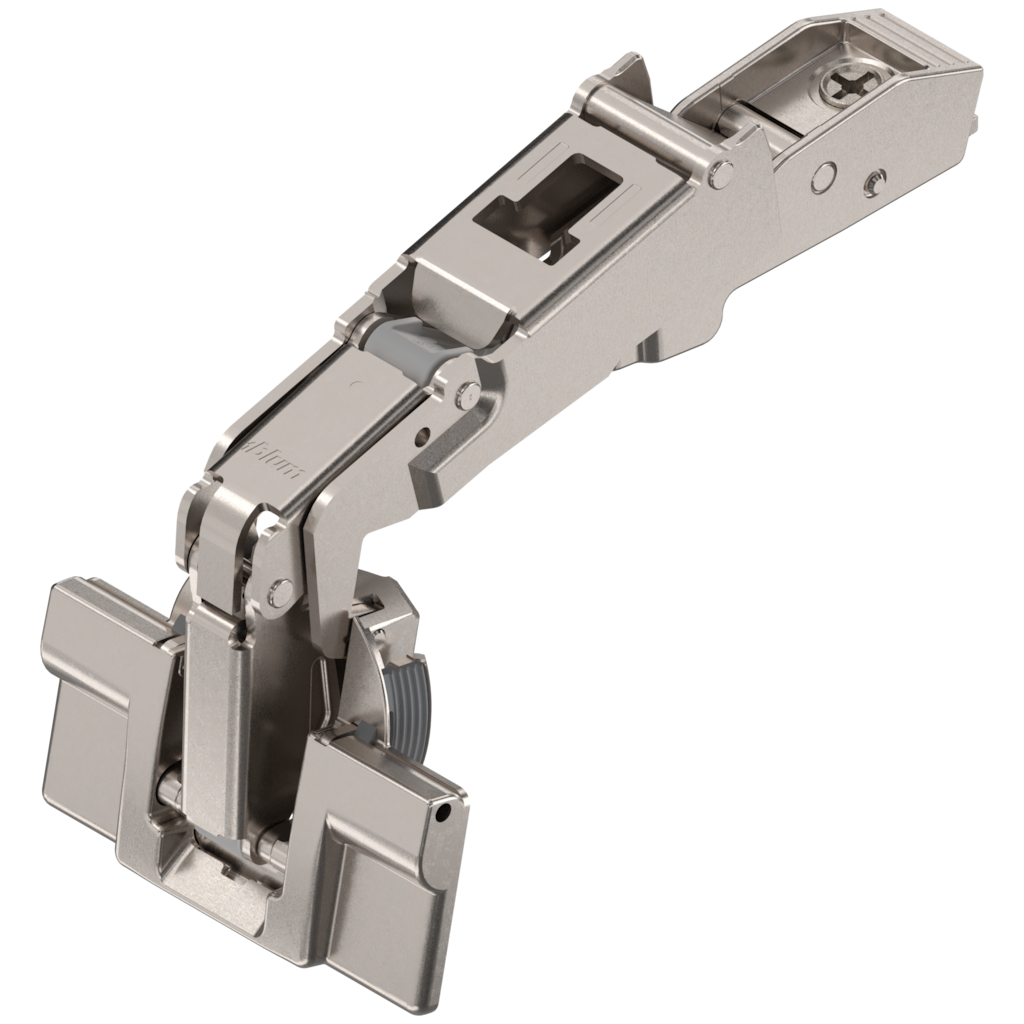

CLIP top wide angle hinge 170°
CLIP top wide angle hinge 170°, overlay application, unsprung, boss: tool-free with INSERTA, Nickel plated
Ident no: 07108803
Part no.: 70T6540BTLMB V25 NI
Box qty: 25 pcs
  • type: wide angle hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: unsprung
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 170 °

CLIP top wide angle hinge 170°, overlay application, unsprung, boss: tool-free with INSERTA, Nickel plated

Ident no: 07108803 Part no.: 70T6540BTLMB V25 NI Box qty: 25 pcs
  • type: wide angle hinge
  • boss fixing: tool-free with INSERTA
  • closing mechanism: unsprung
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 170 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Weitwinkelscharnier ermöglicht große Öffnungswinkel bei Schranktüren. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke.
description Technical data expand_more

Technical data

type
wide angle hinge
boss fixing
tool-free with INSERTA
closing mechanism
unsprung
colour/surface
nickel plated
integrated soft-close mechanism
no
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

person Log in Register now
handyman Assembly instructions expand_more
