CLIP top wide angle hinge for zero protrusion 155°

chevron_left Back

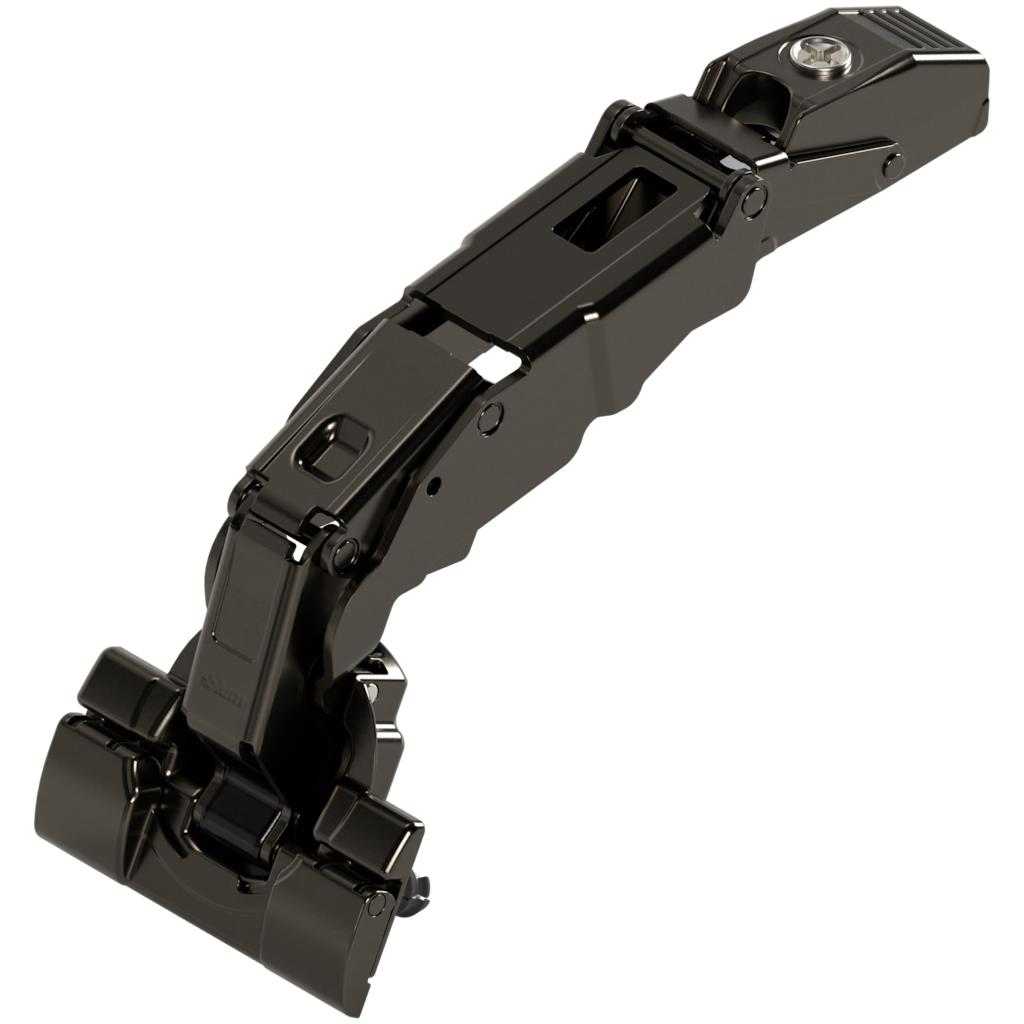

CLIP top wide angle hinge for zero protrusion 155°
CLIP top Wide angle hinge for zero protrusion 155°, overlay application, unsprung, boss: tool-free with INSERTA, Onyx black
Ident no: 06455975
Part no.: 70T7590.TLMB V25 ONS
Box qty: 25 pcs
  • type: wide angle hinge for zero protrusion
  • application: overlay application
  • colour/surface: onyx black
  • boss fixing: tool-free with INSERTA
  • closing mechanism: unsprung
  • hinge system: CLIP top
  • opening angle: 155 °

CLIP top Wide angle hinge for zero protrusion 155°, overlay application, unsprung, boss: tool-free with INSERTA, Onyx black

Ident no: 06455975 Part no.: 70T7590.TLMB V25 ONS Box qty: 25 pcs
  • type: wide angle hinge for zero protrusion
  • application: overlay application
  • colour/surface: onyx black
  • boss fixing: tool-free with INSERTA
  • closing mechanism: unsprung
  • hinge system: CLIP top
  • opening angle: 155 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

The wide angle hinge with zero protrusion is suitable for cabinets with large opening angles, pull-out shelves and inner pull-outs. In combination with the tried-and-tested CLIP mechanism, it is very easy to assemble and adjust, permitting precise adjustment of the door.
description Technical data expand_more

Technical data

type
wide angle hinge for zero protrusion
application
overlay application
colour/surface
onyx black
boss fixing
tool-free with INSERTA
closing mechanism
unsprung
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.
