CLIP top wide angle hinge for zero protrusion 155°

chevron_left Back

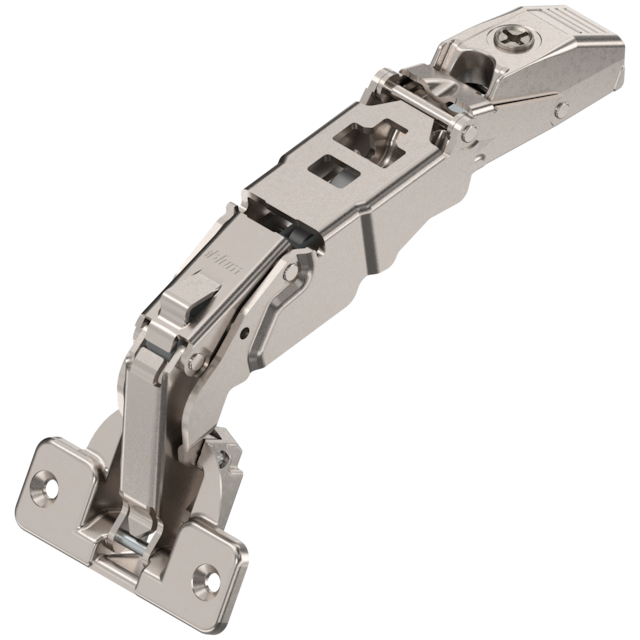

CLIP top wide angle hinge for zero protrusion 155°
CLIP top wide angle hinge for zero protrusion 155°
Ident no: 09075903
Part no.: 71T7500N MB V125 NI
Box qty: 125 pcs
  • type: wide angle hinge for zero protrusion
  • boss fixing: for screwing on
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 155 °

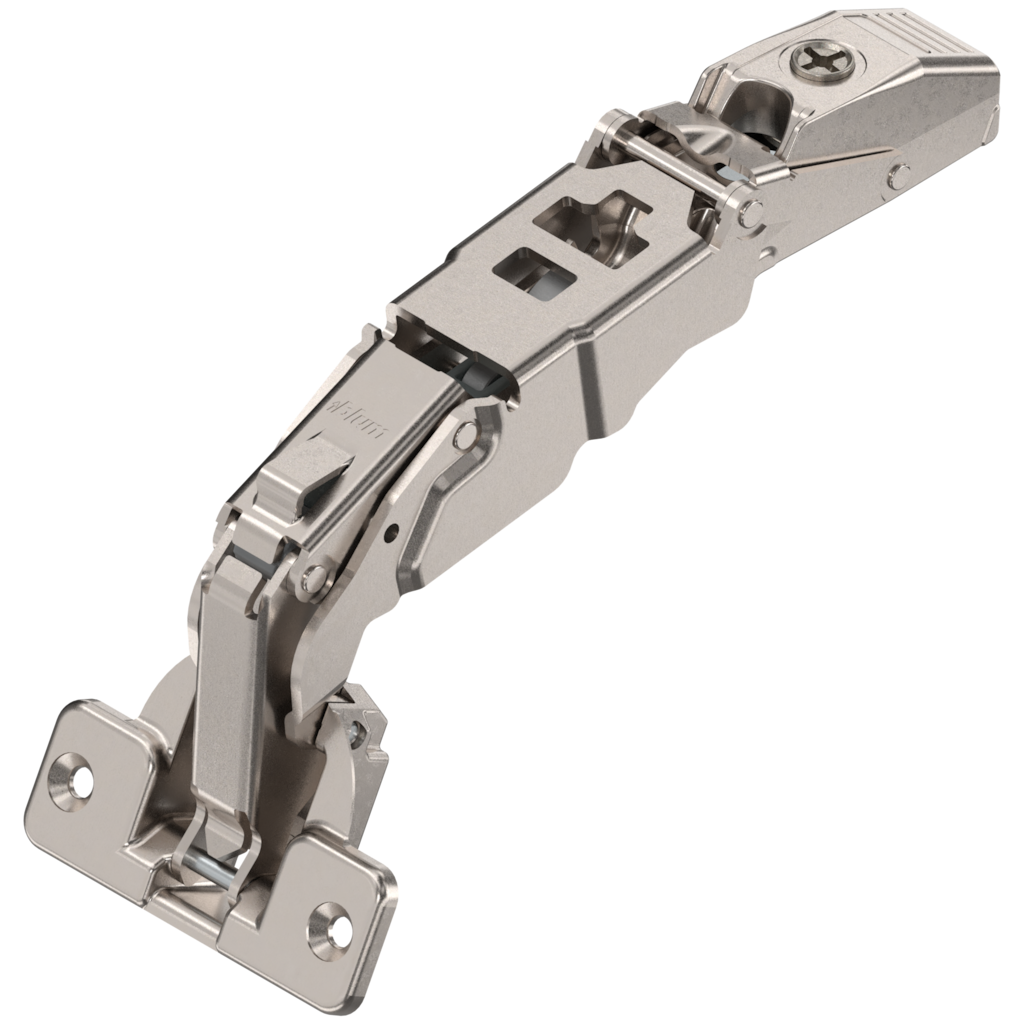

CLIP top Wide angle hinge for zero protrusion 155°, overlay application, boss: screw-on, Nickel plated
Ident no: 09075903 Part no.: 71T7500N MB V125 NI Box qty: 125 pcs
  • type: wide angle hinge for zero protrusion
  • boss fixing: for screwing on
  • closing mechanism: with spring
  • colour/surface: nickel plated
  • application: overlay application
  • opening angle: 155 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Das Weitwinkelscharnier mit Nulleinsprung eignet sich für Schränke mit großem Öffnungswinkel sowie Tablar- oder Innenauszüge. In Kombination mit dem bewährten CLIP-Mechanismus steht es für hohen Einstell- und Montagekomfort sowie für eine komfortable und präzise, dreidimensionale Türjustierung mit Tiefeneinstellung über eine Gewindeschnecke.
description Technical data expand_more

Technical data

type
wide angle hinge for zero protrusion
boss fixing
for screwing on
closing mechanism
with spring
colour/surface
nickel plated
integrated soft-close mechanism
no
